Product Description
The ball screw linear servo motor takes the servo motor as the power source and combines the ball screw transmission assembly with the motor rotor through advanced technology to transform the rotational motion of the motor into linear motion. The ball screw linear servo motor of Changzhou Baolong adopts high efficiency transmission thread design and unique bearing technology, which has more obvious advantages than the conventional T-shaped screw plus stepper motor and the ball screw plus stepper motor combination. the motor is superior to similar products in the market in terms of transmission speed efficiency, reliability, bearing capacity and service life, which is very suitable for higher requirements for motor performance and reliability and precision positioning. Situations where exercise is fast and life is long.
Electrical Specifications
| Motor Model | 17NYTT485030 | 17NYTT481030 |
| Number of Phase | 3 |
| Number of Poles | 10 |
| Rated Voltage (VDC) | 48 |
| Rated Speed (Rpm) | 3000 |
| Rated Torque (N.m) | 0.16 | 0.32 |
| Rated Power (W) | 50 | 100 |
| Rated Current (A) | 1.6 | 3.2 |
| Length (mm) | 63 | 83 |
| Encoder Resolution (P/R) | 1000, 1024, 2500/17bit |
*Note: We can manufacture products according to customer's requirements.
Ballscrew Specifications
| Lead screw model | Lead screw diameter | Lead screw guide | Steel ball diameter | Cycle | Rating load N | Nut |
| d | P | Da | n | Dynamic load Ca | Static load Coa | D | F | B | L | W | H | X |
| 0801 | 8 | 1 | 0.8 | 3 | 650 | 1300 | 14 | 27 | 3.5 | 16 | 21 | 18 | 3.4 |
| 0802 | 8 | 2 | 1.2 | 3 | 1300 | 2300 | 14 | 27 | 4 | 16 | 21 | 18 | 3.4 |
| 0802.5 | 8 | 2.5 | 1.2 | 3 | 1345 | 2694 | 16 | 29 | 4 | 26 | 23 | 20 | 3.4 |
| 0804 | 8 | 4 | 1.5875 | 3 | 1714 | 3480 | 18 | 31 | 4 | 28 | 27 | 20 | 3.4 |
| 0805 | 8 | 5 | 1.5875 | 3 | 1700 | 3458 | 18 | 31 | 4 | 28 | 27 | 20 | 3.4 |
Wiring Diagram

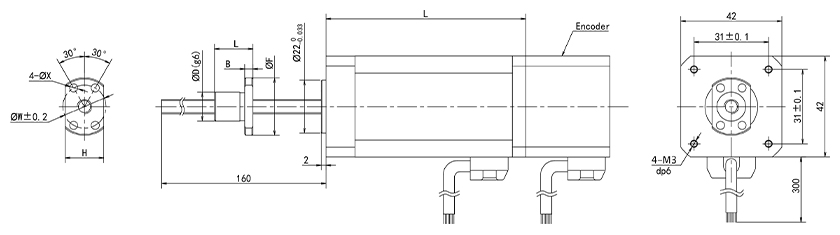

Dimensions (Unit: mm)
