The hybrid linea rstepper motor takes the hybrid motor as the power source, through theadvanced technology, the screw drive component is combined with the motor rotor, and the motor rotation motion is converted to the linear motion. The hybrid linear motor of changzhou BAOLONG adopts the high-efficiency transmission screw design and unique bearing technology, and the motor is superior to the similar products in the market in transmission efficiency, reliability, bearing capacity and life, which is more advantageous than the commonly used metal nut structure design, and the life can be improved at least 8 times. Suitable for occasions with limited space, high requirements for motor performance and reliability, precision positioning, fast motion and long life.

High Precision

Exceptional Endurance

Low Noise

High Efficiency

Electrical Specifications

*Note：We can manufacture products according to customer’s requirements,please contact us when you choose the motor type.

Electrical Specifications

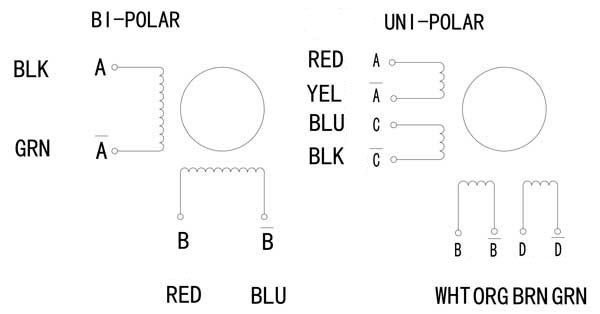

Wiring Diagram

Dimensions(Unit: mm)

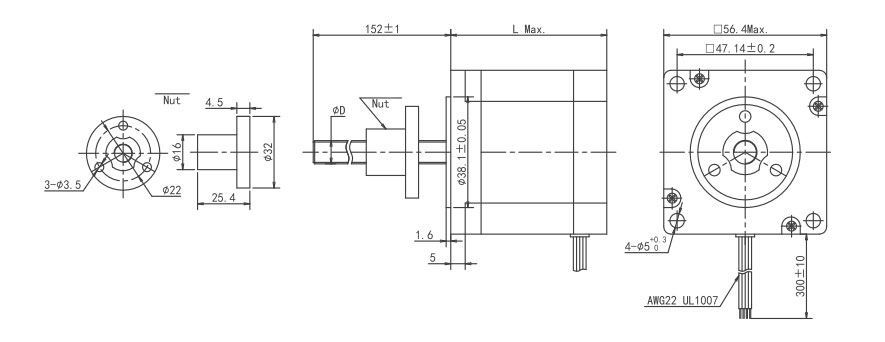

External

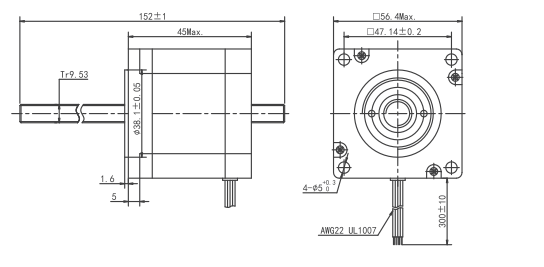

Non-Captive type

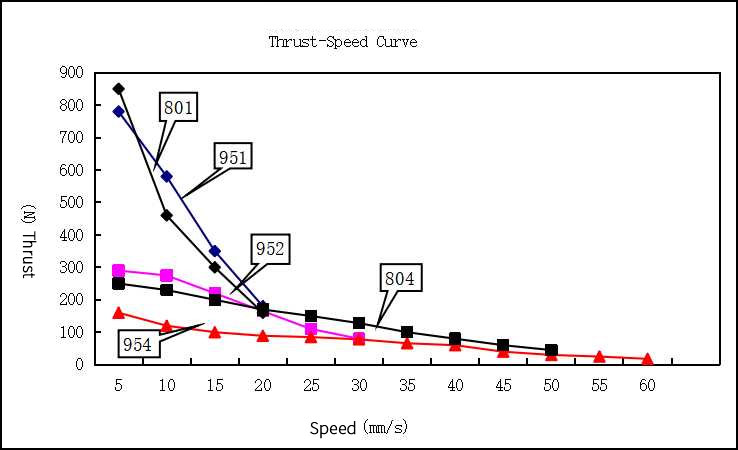

Dynamic Thrust Curve

Drive Mode:Full step Code:801、804、951、952、954

Product Application

Baolong products are widely used in textile machinery, medical equipment, communication equipment, security systems, vehicle manufacturing, as well as robotics, logistics warehousing, industrial automation and other industries. Baolong's R&D team is always ready to meet the increasingly differentiated needs of the market.
