      24HT 3 Phase Hybrid Stepping motor

      Phases: 3

      Steps/Revolution: ±5%

      Step Accuracy: 40N(9 Lbs.)Push

      Radial: 70N(15.5 Lbs.)At End Shaft

      IP Rating: 40

      Operating Temp: -20℃ to +50℃

      WHAT ARE YOU LOOKING FOR?
      *
      This field is required
      Total quantity you need
      *
      This field is required
      *
      This field is required
      Email format error
      Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
      This field is required
      Telephone information is wrong!
      Send Message
      http://www.sy-duoduo.com.cn/uploadfiles/128.1.164.27/webid501/source/202206/165483181713.jpg
      • Product Specifications
      • Quality Assurance
      • Application and Processing
      • Our Services

      A hybrid stepper motor or a HB stepper motor is a combination of the features of the variable reluctance stepper motor and permanent magnet stepper motor. HB stepper motors are the easiest devices for precise positioning control. They are widely being used in various application for position and speed via all kinds of control signals such as digital, analog, communication etc. HB motors come in different types including the basic type, encoder type, IP65 type, brake type and geared type.


      Phases3
      Steps/Revolution±5%
      Step Accuracy40N(9 Lbs.)Push
      130N(30 Lbs.)Pull
      Radial70N(15.5 Lbs.)At End Shaft
      IP Rating40
      Operating Temp-20℃ to +50℃
      Insulation ClassB, 130℃
      Insulation Resistance100 MegOhms


      Electrical Specifications

      Series
      Model      		Rated
      Current
      (A)      		Phase
      Resistance
      (Ω)      		Phase
      Inductance
      (mH)      		Lead
      Wire
      (No.)      		Holding
      Torque
      (N.cm)      		Motor
      Length L
      (mm)      		Rotor
      Inertia
      (Kg.cm2)      		Motor
      Weight
      (Kg)      		Step
      Angle
      (°)
      24HT63353.50.951.830.8560.280.581.2
      24HT73464.60.71.21.1640.380.85
      24HT76274.611.261.1
      24HT83464.60.81.531.3760.441.15
      24HT13656.50.4511.6900.581.4

      *Note：We can manufacture products according to customer’s requirements.

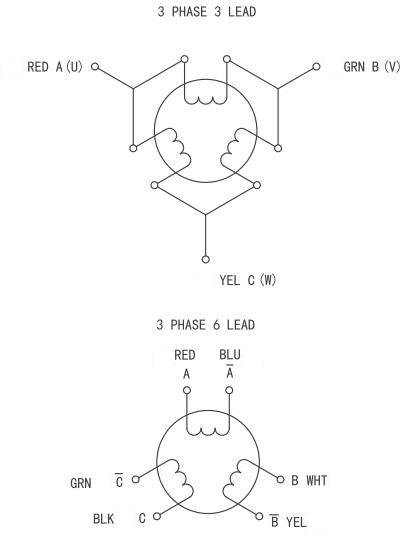

      Wiring Diagram

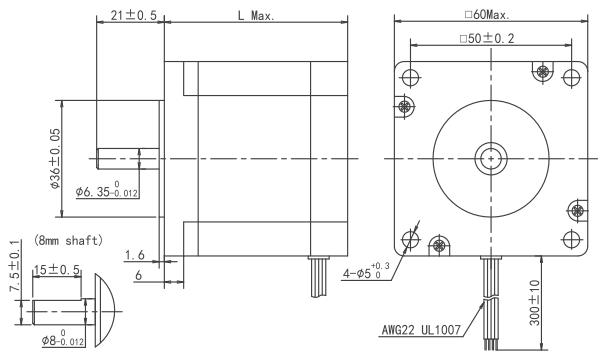

      Dimensions(Unit: mm)

      stepper motors for sale


      Torque Curves

      24HT8346



      Product Application

      Baolong products are widely used in textile machinery, medical equipment, communication equipment, security systems, vehicle manufacturing, as well as robotics, logistics warehousing, industrial automation and other industries. Baolong's R&D team is always ready to meet the increasingly differentiated needs of the market.



      Why do we use Brushless Motor?

      Brushless motors offer high performance, good speed-torque characteristics, long life and low maintenance costs, making them ideal for manufacturing applications.
