Product Description
The ball screw linear servo motor takes the servo motor as the power source and combines the ball screw transmission assembly with the motor rotor through advanced technology to transform the rotational motion of the motor into linear motion. The ball screw linear servo motor of Changzhou Baolong adopts high efficiency transmission thread design and unique bearing technology, which has more obvious advantages than the conventional T-shaped screw plus stepper motor and the ball screw plus stepper motor combination. the motor is superior to similar products in the market in terms of transmission speed efficiency, reliability, bearing capacity and service life, which is very suitable for higher requirements for motor performance and reliability and precision positioning. Situations where exercise is fast and life is long.
Electrical Specifications
| Motor Model | 24SSTT482030 | 24SSTT484030 | 24SSTT2202030 | 24SSTT2204030 |
| Number of Phase | 3 | 3 |
| Number of Poles | 10 | 10 |
| Rated Voltage (VDC/VAC) | 48 | 220 |
| Rated Speed(Rpm) | 3000 | 3000 |
| Rated Torque (N.m) | 0.64 | 1.27 | 0.64 | 1.27 |
| Rated Power (W) | 200 | 400 | 200 | 400 |
| Rated Current (A) | 5.5 | 11 | 1.45 | 2.9 |
| Length (mm) | 82 | 97 | 82 | 97 |
| Encoder Resolution (P/R) | 1000, 1024, 2500/17bit, 23bit |
*Note: We can manufacture products according to customer's requirements.
Ballscrew Specifications
| Lead screw model | Lead screw diameter | Lead screw guide | Steel ball diameter | Cycle | Rating load N | Nut |
| d | P | Da | n | Dynamic load Ca | Static load Coa | D | F | B | L | E | W | H | X |
| 1202 | 12 | 2 | 1.5875 | 3.7×1 | 3000 | 6400 | 25 | 42 | 5 | 24 | | 34 | 27 | 4.5 |
| 1210 | 12 | 10 | 2.381 | 1.7×2 | 5100 | 9600 | 24 | 41 | 5 | 30 | 9.5 | 33 | 26 | 4.5 |
Wiring Diagram

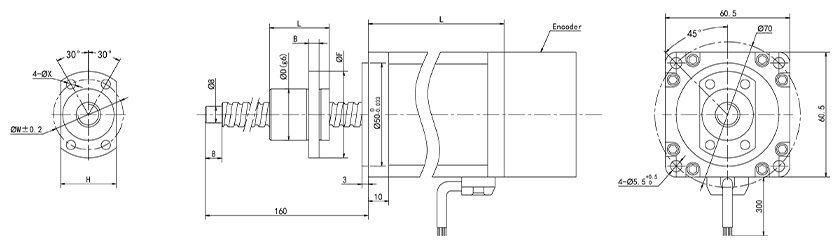

Dimensions (Unit: mm)
How Does Baolong Ensure Product Quality?
Through more professional technical support andservices to help them create sustainable value, win the trust and respect of customers home and abroad.During the past 20 years since establishment, our company has focused on the technica team building, constantly improving product quality.
Strict production process control
Carefully planning and controlling the production process of brushless motors to ensure that each step complies with standards and specifications. Using advanced production equipment and technology to improve production efficiency and product consistency.
Establishing a comprehensive quality inspection and testing system, including inspections of raw materials, components, and final products, among other stages. Using appropriate testing equipment and methods to ensure that the products meet the specified technical specifications and performance requirements.
Sound quality inspection and testing
Comprehensive product validation and certification
Conducting comprehensive validation and certification of brushless motor products to ensure compliance with international and industry standards. This may include electrical performance testing, temperature and humidity testing, durability testing, and so on.
Establishing a sound after-sales service system to promptly address customer quality issues and complaints. Analyzing and improving product quality issues to prevent similar problems from recurring and providing customers with satisfactory solutions.
Establishing an after-sales service system
Ordering Process
Analysis Design
Confirm Drawings
Make Rotor and Stator
Assembly
Test Inspection
Packaging and Delivery
Product Application
Baolong products are widely used in textile machinery, medical equipment, communication equipment, security systems, vehicle manufacturing, as well as robotics, logistics warehousing, industrial automation and other industries. Baolong's R&D team is always ready to meet the increasingly differentiated needs of the market.
Industry Six Axis Collaborative
3-axis Desktop Education Robotic Arm
Embroidery Machine
Sock Weaving Machine
Transmission Equipment
Coffee Machines
Logistics Sorting
AGV
Why do we use Servo Motor?
The servo motor can control the speed, position accuracy is very accurate, can convert the voltage signal to the torque and speed to drive the control object. The rotor speed of the servomotor is controlled by the input signal and can respond quickly.
Who is Baolong Motor?
Changzhou Baolong Motor Co.,Ltd. is a high-tech enterprise specializing in the development, design, production and marketing of stepper motors.Founded in 2004, we adhere to the "innovative product, excellentquality, customer-centered" purpose, focusing on the micro-special motor industry, to provide automationequipment manufacturers with quality motor products. Through more professional technical support andservices to help them create sustainable value, win the trust and respect of customers home and abroad.During the past 20 years since establishment, our company has focused on the technica team building, constantly improving product quality. With a profound technical background and rich experience in motorindustry, we have successively developed stepping servo motor, stepping linear motor，motor driver,DCbrushless motor,AC servo motor, gear box and other products, which are widely used in textile machinery,medical equipment, communications equipment, security systems, vehicle manufacturing, as well as robots,logistics warehousing, industrial automation and other industries.
Why Baolong Is Trusted By 1000+ Global Partners?
Own FactoryWe have our own factory with complete molds and a complete set of production processes.
Production EnvironmentOur production facilities prioritize high standards and environmental sustainability.
Pay Attention to Product QualityWe manufacture all the products of excellent quality and we can always meet the design as customers required.
Free SupportProvide fast and timely delivery, and can answer your questions 24 hours a day.
