A hybrid stepper motor or a HB stepper motor is a combination of the features of the variable reluctance stepper motor and permanent magnet stepper motor. HB stepper motors are the easiest devices for precise positioning control. They are widely being used in various application for position and speed via all kinds of control signals such as digital, analog, communication etc. HB motors come in different types including the basic type, encoder type, IP65 type, brake type and geared type.

Electrical Specifications

*Note：We can manufacture products according to customer’s requirements.

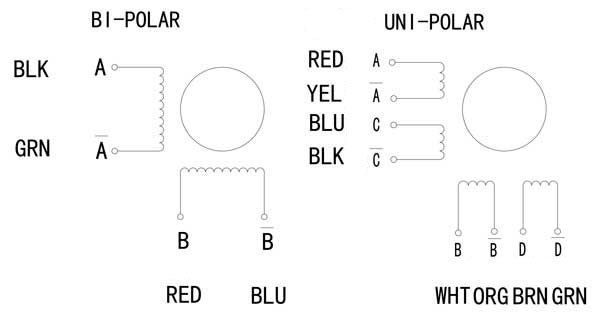

Wiring Diagram

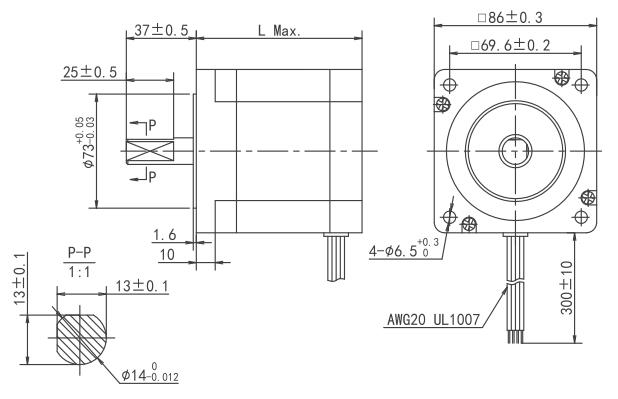

Dimensions(Unit: mm)

Torque Curves

Pulse Rate Vs Torque Characteristics (Pull-out Torque)

34HS6403

34HS8401

34HS9402

34HS2401

34HS2402

34HS5401

Product Application

Baolong products are widely used in textile machinery, medical equipment, communication equipment, security systems, vehicle manufacturing, as well as robotics, logistics warehousing, industrial automation and other industries. Baolong's R&D team is always ready to meet the increasingly differentiated needs of the market.

Why do we use Brushless Motor?

Brushless motors offer high performance, good speed-torque characteristics, long life and low maintenance costs, making them ideal for manufacturing applications.
