Product Description
72ES Outer Rotor Brushless Motor inside and a much higher moment of inertia of the rotor (on the main quality is concentrated in the shell of the rotor.
A Brushless Flat Motor, also known as a Flat Brushless DC Motor or DC Flat Motor, is a specific type of motor design characterized by its flat and compact structure. This motor configuration is widely used in various industries where space is limited, and a low-profile design is required.
The term "brushless" indicates that this motor operates without brushes for commutation, resulting in improved reliability and reduced maintenance compared to brushed motors. The brushless flat motor utilizes electronic commutation to control the motor's stator windings and achieve smooth and efficient rotation.
The flat brushless DC motor is designed with a flat shape, featuring a thin profile and a wide diameter. This design allows for efficient integration into space-constrained applications, such as robotics, medical devices, automotive systems, and consumer electronics. The compact size and low-profile nature of the motor make it ideal for installations where height restrictions or weight limitations exist.
Electrical Specifications
| Motor Model | 72ESDN481010 | 72ESDN481510 |
| Number of Phase | 3 |
| Number of Poles | 28 |
| Rated Voltage (VDC) | 48 |
| Rated Speed (Rpm) | 1000 |
| Rated Torque (N.m) | 1.0 | 2.0 |
| Rated Power (W) | 104 | 209 |
| Rated Current (A) | 3.0 | 6.0 |
| Peak Current (A) | 6.0 | 12 |
| Peak Torque (N.M) | 2.0 | 4.0 |
| Rotor Inertia (kg.cm2) | 0.25 | 0.55 |
| Torque Constant (N.m/A) | 0.33 | 0.33 |
| Torque Constant (V/krpm) | 28 | 28 |
| Line-Line Resistance (Ω) | 2.0 | 1.0 |
| Line-Line Inductance (mH) | 1.5 | 0.5 |
| Length (mm) | 30 | 40 |
| Weight (kg) | 0.4 | 0.6 |
*Note: We can manufacture products according to customer's requirements.
Wiring Diagram

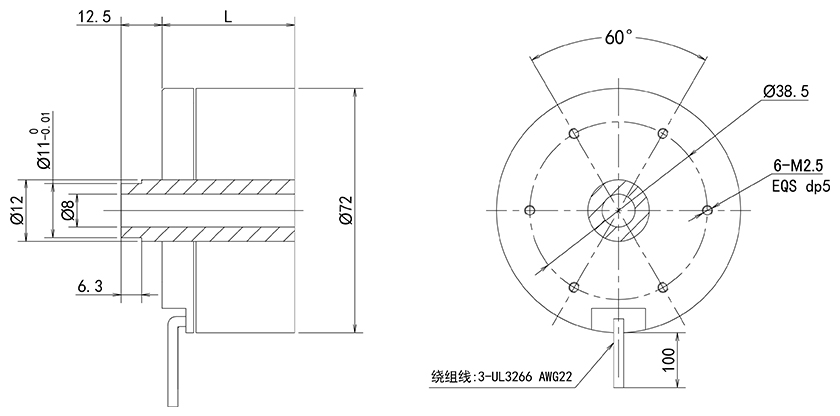

Dimensions(Unit: mm)
