Product Description
The 57PGF-23WSTE series planetary gearbox square brushless DC motor is a high-performance driving solution suitable for various industrial and commercial application scenarios.
The Square Gearbox Brushless Motor is a groundbreaking engineering solution, seamlessly integrating high-performance brushless technology with a robust gearbox system. At the heart of this versatile system lies the mini drone brushless motor, a compact and lightweight unit designed to meet the demanding requirements of drone and unmanned aerial vehicle (UAV) applications.
The mini drone brushless motor's compact size and high power density make it an ideal choice for drone and UAV enthusiasts and professionals. Its brushless design ensures long-lasting operation and reduced maintenance, allowing you to push the boundaries of your aerial projects.
Complementing the mini drone brushless motor is the low rpm brushless motor, a specialized unit designed to deliver exceptional torque and precision at lower rotational speeds. The low rpm brushless motor's ability to operate efficiently at lower RPMs opens up a world of possibilities for applications that require high-torque, low-speed performance.
Tying these components together is the 3 phase brushless dc motor controller, a sophisticated electronic system that provides precise and responsive control. The 3 phase brushless dc motor controller's advanced algorithms and feedback mechanisms ensure seamless operation, allowing users to harness the full potential of the Square Gearbox Brushless Motor.
Electrical Specifications
| Motor Model | 23WSTE486030 | 23WSTE481230 | 23WSTE481830 |
| Rated Voltage(VDC) | 48 |
| Rated Speed(Rpm) | 3000 |
| Rated Torque(N.m) | 0.2 | 0.4 | 0.6 |
| Rated Power(W) | 60 | 120 | 180 |
| Length(mm) | 58 | 78 | 98 |
*Note: We can manufacture products according to customer's requirements.
Gearbox Electrical Specifications
| Reducer Series | 1 | 2 |
| Transmission efficiency | 95% | 90% |
| Max radial load | 580N | 580N |
| Max axial load | 340N | 340N |
| Transmission torque | 25N.m | 40N.m |
| Reduction Ratio | 5,10 | 15,20,25,30,40,50 |
| Length(mm) | 55 | 71 |
Wiring Diagram

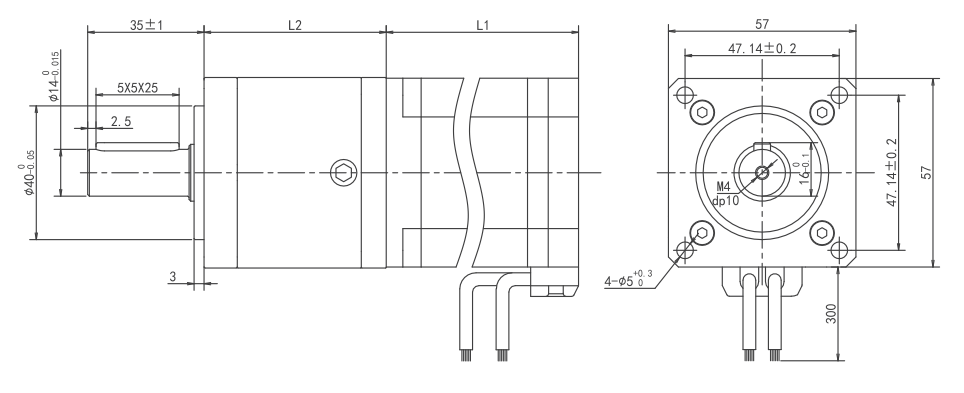

Dimensions(Unit: mm)
How Does Baolong Ensure Product Quality?
Through more professional technical support andservices to help them create sustainable value, win the trust and respect of customers home and abroad.During the past 20 years since establishment, our company has focused on the technica team building, constantly improving product quality.
Strict production process control
Carefully planning and controlling the production process of brushless motors to ensure that each step complies with standards and specifications. Using advanced production equipment and technology to improve production efficiency and product consistency.
Establishing a comprehensive quality inspection and testing system, including inspections of raw materials, components, and final products, among other stages. Using appropriate testing equipment and methods to ensure that the products meet the specified technical specifications and performance requirements.
Sound quality inspection and testing
Comprehensive product validation and certification
Conducting comprehensive validation and certification of brushless motor products to ensure compliance with international and industry standards. This may include electrical performance testing, temperature and humidity testing, durability testing, and so on.
Establishing a sound after-sales service system to promptly address customer quality issues and complaints. Analyzing and improving product quality issues to prevent similar problems from recurring and providing customers with satisfactory solutions.
Establishing an after-sales service system
Ordering Process
Analysis Design
Confirm Drawings
Make Rotor and Stator
Assembly
Test Inspection
Packaging and Delivery
Product Application
Baolong products are widely used in textile machinery, medical equipment, communication equipment, security systems, vehicle manufacturing, as well as robotics, logistics warehousing, industrial automation and other industries. Baolong's R&D team is always ready to meet the increasingly differentiated needs of the market.
Electric Medical Beds
CT Machines
Blood Analyser
Ticket Card Recycling
Transmission Equipment
Coffee Machines
Logistics Sorting
AGV
Why do we use Brushless Motor?
Brushless motors offer high performance, good speed-torque characteristics, long life and low maintenance costs, making them ideal for manufacturing applications.
