Brushless DC motor is composed of motor body and driver, which is a typical mechatronics product. The stator windings of the motor are mostly made of three - phase symmetric star connection, which is very similar to three - phase asynchronous motor. A magnetized permanent magnet is attached to the rotor of the motor. In order to detect the polarity of the rotor, a position sensor is installed in the motor. The driver is composed of power electronic devices and integrated circuits, etc. Its functions are: to accept the start, stop and brake signals of the motor to control the start, stop and brake of the motor; It receives position sensor signals and positive and negative rotation signals, which are used to control on and off of each power tube of the inverter bridge and generate continuous torque. Accept speed instruction and speed feedback signal, used to control and adjust the speed; Provide protection, display, and so on.
0
Basic Size: 28mm
Length (mm): 46mm-66mm
Rated Voltage (VDC): 24VDC
Rated Torque (N.m): 0.03-0.06N.m
Rated Power (W): 12-24W
Rated Speed (Rpm): 4000Rpm
Product Description
The 24v brushless motor design of the 11WLSE series motors means lower maintenance requirements and longer service life, providing higher efficiency and reliability compared to traditional brushed motors. The characteristics of the motor include:
Motor structure: The stator winding adopts a three-phase symmetrical star connection, similar to a three-phase asynchronous motor, providing stable and uniform electric power.
Rotor design: The rotor is equipped with permanently magnetized permanent magnets, enhancing the performance of the motor.
Sensing and control: Built in position sensors are used to monitor the position of the rotor, which is crucial for high-precision control. The driver integrates advanced power electronics technology and microprocessor control, responding to various control signals of the motor, such as start, stop, and brake commands, while managing the power transistor of the inverter bridge to ensure efficient torque output.
System interaction: The driver is also responsible for receiving and processing speed instructions and feedback, while providing system protection and status display functions, increasing user convenience and system security.
Brushless motor manufacturers is searching for a 24V BLDC motor, a 24 watt motor, or brushless motor manufacturers, there are several options you can explore.
Industrial suppliers and distributors specializing in electrical and automation equipment may carry a range of brushless motors. or inquire about the availability of 24V BLDC motors or 24 watt motors.
Electrical Specifications
| Motor Model | 11WLSE241240 | 11WLSE241840 | 11WLSE242540 |
| Number of Phase | 3 | ||
| Number of Poles | 8 | ||
| Rated Voltage (VDC) | 24 | ||
| Rated Speed (Rpm) | 4000 | ||
| Rated Torque (N.m) | 0.03 | 0.045 | 0.06 |
| Rated Power (W) | 12.5 | 18.8 | 25 |
| Rated Current (A) | 0.7 | 0.9 | 1.3 |
| Peak Current (A) | 2.1 | 2.7 | 3.9 |
| Peak Torque (N.M) | 0.09 | 0.13 | 0.18 |
| Rotor Inertia (kg.cm2) | 0.01 | 0.02 | 0.03 |
| Torque Constant (N.m/A) | 0.04 | 0.04 | 0.04 |
| Torque Constant (V/krpm) | 4.48 | 5.23 | 4.18 |
| Line-Line Resistance (Ω) | 1.9 | 2.5 | 3.4 |
| Line-Line Inductance (mH) | 0.9 | 1.1 | 1.3 |
| Length (mm) | 46 | 56 | 66 |
| Weight (kg) | 0.22 | 0.38 | 0.55 |
*Note: We can manufacture 24 volt DC servo motors according to customer's requirements.
Wiring Diagram

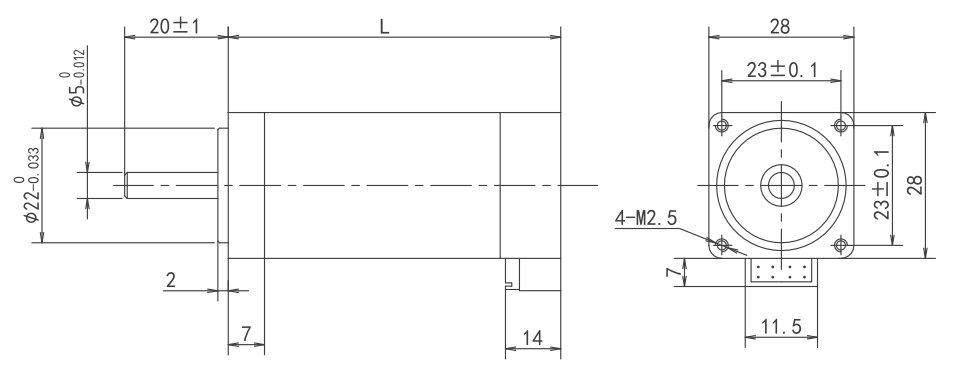

Dimensions(Unit: mm)
