Brushless DC motor is composed of motor body and driver, which is a typical mechatronics product. The stator windings of the motor are mostly made of three - phase symmetric star connection, which is very similar to three - phase asynchronous motor. A magnetized permanent magnet is attached to the rotor of the motor. In order to detect the polarity of the rotor, a position sensor is installed in the motor. The driver is composed of power electronic devices and integrated circuits, etc. Its functions are: to accept the start, stop and brake signals of the motor to control the start, stop and brake of the motor; It receives position sensor signals and positive and negative rotation signals, which are used to control on and off of each power tube of the inverter bridge and generate continuous torque. Accept speed instruction and speed feedback signal, used to control and adjust the speed; Provide protection, display, and so on.
0
Basic Size: 62mm
Length (mm): 61mm-101mm
Rated Voltage (VDC): 48VDC
Rated Torque (N.m): 0.25-0.75N.m
Rated Power (W): 78-235W
Rated Speed (Rpm): 3000Rpm
Product Description
The brushless technology of the 62BSTE series motor reduces maintenance requirements and extends motor life. Due to the absence of friction caused by brushes and commutators, the motor operates more smoothly and cleanly. The built-in precise control sensor ensures high-precision speed and position monitoring, making the motor perform well in performing precise tasks.
These characteristics make the 62BSTE series motors an ideal choice for seeking durable, efficient, and reliable electric solutions, especially in the fields of industrial automation, precision machining, and high-end equipment manufacturing.
The 3 phase BLDC motor controller is a key component in driving and controlling 3 phase brushless DC motors. It provides the necessary control signals to energize the motor's windings in a synchronized manner, enabling smooth and efficient motor operation. The 3-phase BLDC motor controller typically incorporates advanced control algorithms to regulate motor speed, torque, and direction. It is widely used in various applications such as industrial automation, electric vehicles, and HVAC systems.
The intelligent brushless motor controller specifically refers to a controller that incorporates advanced features and capabilities beyond basic motor control. It typically includes additional functionalities such as communication interfaces (e.g., CAN bus, Ethernet), sensor integration (e.g., encoders, hall sensors), and advanced control algorithms (e.g., field-oriented control). The intelligent brushless motor controller 48v offers enhanced flexibility, real-time monitoring, and communication capabilities, making it suitable for sophisticated applications that require advanced control and system integration.
A sensorless brushless motor controller is designed to operate a brushless motor without the need for additional position or speed sensors. Instead, it utilizes the back electromotive force (EMF) generated by the motor's windings to estimate the rotor position and commutation timing. By eliminating the need for sensors, the sensorless brushless motor controller simplifies the motor system, reduces costs, and enhances reliability.
Electrical Specifications
| Motor Model | 62BSTE487830 | 62BSTE481130 | 62BSTE481530 | 62BSTE481930 | 62BSTE482330 |
| Number of Phase | 3 | ||||
| Number of Poles | 8 | ||||
| Rated Voltage (VDC/VAC) | 48 | ||||
| Rated Speed (Rpm) | 3000 | ||||
| Rated Torque (N.m) | 0.25 | 0.37 | 0.5 | 0.62 | 0.75 |
| Rated Power (W) | 78 | 118 | 156 | 195 | 235 |
| Rated Current (A) | 2.2 | 3.3 | 4.4 | 5.5 | 6.6 |
| Peak Current (A) | 6.6 | 9.9 | 13.2 | 16.5 | 19.8 |
| Peak Torque (N.M) | 0.75 | 1.11 | 1.5 | 1.86 | 2.25 |
| Rotor Inertia (kg.cm2) | 0.6 | 0.7 | 0.8 | 0.9 | 1 |
| Torque Constant (N.m/A) | 0.11 | 0.11 | 0.11 | 0.11 | 0.11 |
| Torque Constant (V/krpm) | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
| Line-Line Resistance (Ω) | 1.8 | 1.5 | 1.2 | 0.9 | 0.6 |
| Line-Line Inductance (mH) | 1.5 | 1.3 | 1 | 0.7 | 0.65 |
| Length (mm) | 61 | 71 | 81 | 91 | 101 |
| Weight (kg) | 0.72 | 0.88 | 1.04 | 1.2 | 1.37 |
*Note: We can manufacture products according to customer's requirements.
Wiring Diagram

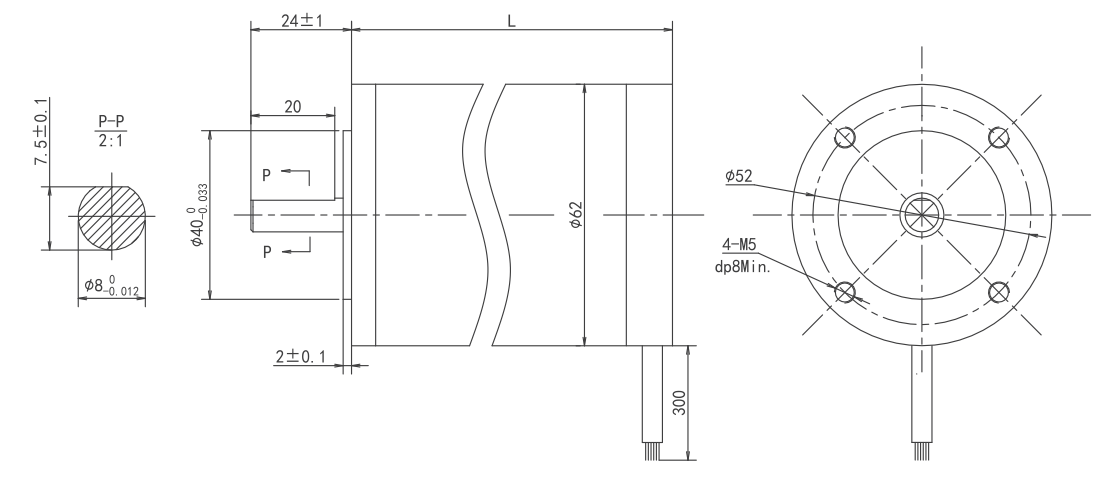

Dimensions(Unit: mm)
