Brushless DC motor is composed of motor body and driver, which is a typical mechatronics product. The stator windings of the motor are mostly made of three - phase symmetric star connection, which is very similar to three - phase asynchronous motor. A magnetized permanent magnet is attached to the rotor of the motor. In order to detect the polarity of the rotor, a position sensor is installed in the motor. The driver is composed of power electronic devices and integrated circuits, etc. Its functions are: to accept the start, stop and brake signals of the motor to control the start, stop and brake of the motor; It receives position sensor signals and positive and negative rotation signals, which are used to control on and off of each power tube of the inverter bridge and generate continuous torque. Accept speed instruction and speed feedback signal, used to control and adjust the speed; Provide protection, display, and so on.
0
Basic Size: 32mm
Length (mm): 56mm-76mm
Rated Voltage (VDC): 24VDC
Rated Torque (N.m): 0.03-0.06N.m
Rated Power (W): 12-24W
Rated Speed (Rpm): 4000Rpm
Product Description
The 32RLSE series motors adopt a brushless design, reducing maintenance requirements and improving operational efficiency and lifespan. This design ensures smoother and quieter motor operation by eliminating friction and wear caused by brushes and commutators. The built-in high-precision sensors provide precise speed and position feedback, making the motor particularly effective in automated control systems.
This motor is particularly suitable for high-precision medical equipment, automation instruments, small robot technology, and other fields that require small, efficient motor solutions. Its high performance and reliability make it the preferred choice for designers and engineers seeking excellent operational performance.
The 24 volt brushless motor is a popular choice in various applications, offering a balance between power and efficiency. With a 24 volt power supply, this motor provides reliable performance in applications such as electric scooters, robotics, and small electric vehicles. Its voltage rating allows for efficient power consumption while delivering sufficient torque and speed for the intended application.
A low speed brushless motor is designed specifically to operate at lower rotational speeds. These motors are commonly used in applications where precise control and smooth operation at low speeds are required. Examples of such applications include conveyor systems, precision machinery, and robotics. The low speed brushless motor offers enhanced accuracy and reduced noise, making it suitable for tasks that demand finer control and quieter operation.
A 3 phase brushless motor controller is an essential component that enables the operation of brushless motors. This type of controller is designed to provide the necessary control signals and power regulation for 3 phase brushless motor controller. It facilitates the commutation process and ensures smooth rotation and precise control over motor speed and torque. The 3 phase brushless motor controller is widely employed in various industries, including industrial automation, electric vehicles, and HVAC systems.
Electrical Specifications
| Motor Model | 32RLSE241240 | 32RLSE241840 | 32RLSE242540 |
| Number of Phase | 3 | ||
| Number of Poles | 8 | ||
| Rated Voltage (VDC) | 24 | ||
| Rated Speed (Rpm) | 4000 | ||
| Rated Torque (N.m) | 0.03 | 0.045 | 0.06 |
| Rated Power (W) | 12.5 | 18.8 | 25 |
| Rated Current (A) | 0.7 | 0.9 | 1.3 |
| Peak Current (A) | 2.1 | 2.7 | 3.9 |
| Peak Torque (N.M) | 0.09 | 0.13 | 0.18 |
| Rotor Inertia (kg.cm2) | 0.01 | 0.02 | 0.03 |
| Torque Constant (N.m/A) | 0.04 | 0.04 | 0.04 |
| Torque Constant (V/krpm) | 4.48 | 5.23 | 4.18 |
| Line-Line Resistance (Ω) | 1.9 | 2.5 | 3.4 |
| Line-Line Inductance (mH) | 0.9 | 1.1 | 1.3 |
| Length (mm) | 56 | 66 | 76 |
| Weight (kg) | 0.22 | 0.38 | 0.55 |
*Note: We can manufacture products according to customer's requirements.

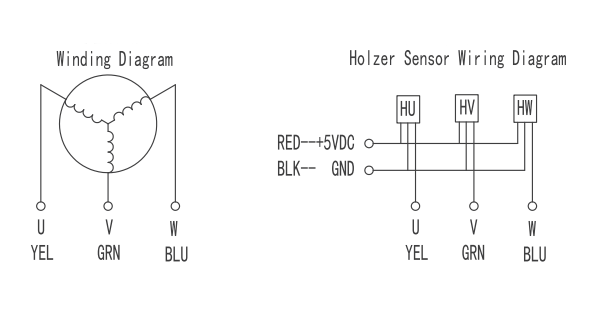

Wiring Diagram

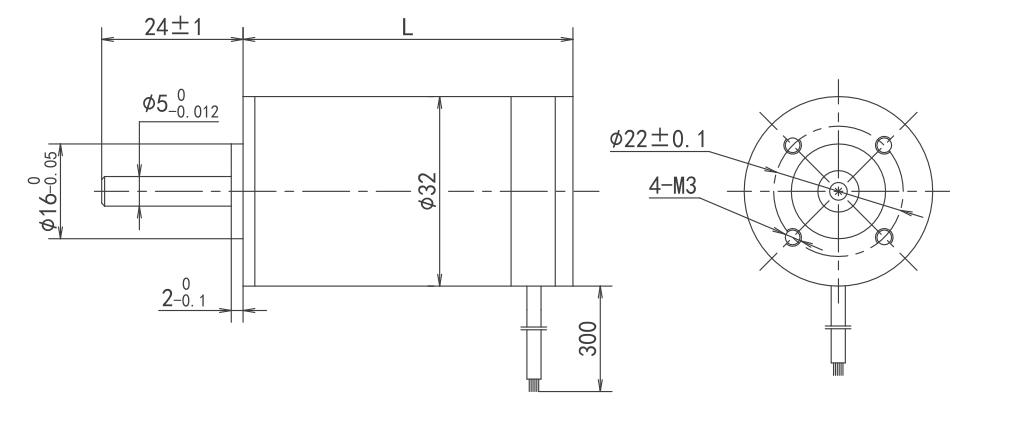

Dimensions(Unit: mm)
