      32PFSR-14HS Series Planetery Gearbox Stepper Motor

      Small size

      Long life

      High precise

      Low noise

      Low cost

      IP44

      WHAT ARE YOU LOOKING FOR?
      *
      This field is required
      Total quantity you need
      *
      This field is required
      *
      This field is required
      Email format error
      Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
      This field is required
      Telephone information is wrong!
      Send Message
      http://www.sy-duoduo.com.cn/uploadfiles/128.1.164.27/webid501/source/202206/16548200055.jpg
      • Product Specifications
      • Quality Assurance
      • Application and Processing
      • Our Services

      Planetery gearbox stepper motor has the characteristics of high precision, high rigidity, high load, high efficiency, high speed ratio, high life, low inertia, low vibration, low noise, low temperature rise, beautiful appearance, light structure, easy installation, accurate positioning and so on.


      Small size

      Long life

      High precise

      Low noise

      Low cost

      IP44


      Technicaldata

      Gear RatioLength(mm)EfficiencyRated TorquePermissibleTorque(Max)Noise (dB)Backlash min.
      at No-load      		Weight(g)
      1 Stage3.7125.690%0.3N.m1N.m@1m
      ≤60dB      		≤60arcmin113
      5.18
      6.75
      2 Stage143481%1.2N.m3.5N.m145
      19
      27
      35
      46
      3Stage514273%2.5N.m7.5N.m184
      71
      100
      139
      181
      236
      307


      Stepper motor Electrical Specifications

      Series
      Model      		Rated
      Current
      (A)      		Phase
      Resistance
      (Ω)      		Phase
      Inductance
      (mH)      		Lead
      Wire
      (No.)      		Holding
      Torque
      (N.cm)      		Motor
      Length L
      (mm)      		Rotor
      Inertia
      (g.cm2)      		Motor
      Weight
      (g)      		Step
      Angle
      (°)
      14HS24020.84.24.541431121201.8
      14HS34020.87.59.8203918160
      14HS54202.01.62.3405826230

      *Note：We can manufacture products according to customer’s requirements.

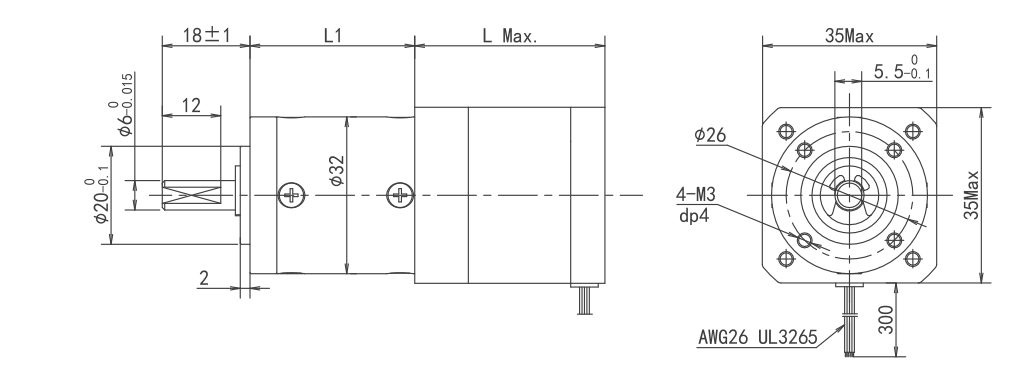

      Dimensions(Unit: mm)

      nema 14HS Series Planetery Gearbox Stepper Motor Dimensions


      Product Application

      Baolong products are widely used in textile machinery, medical equipment, communication equipment, security systems, vehicle manufacturing, as well as robotics, logistics warehousing, industrial automation and other industries. Baolong's R&D team is always ready to meet the increasingly differentiated needs of the market.



      Why do we use Brushless Motor?

      Brushless motors offer high performance, good speed-torque characteristics, long life and low maintenance costs, making them ideal for manufacturing applications.
