      SD Series high-performance Stepper Drives Motor Drive

      · Torque Ripple Smoothing

      · Microstep Emulation

      · Advanced Current Control

      · Anti-Resonance

      WHAT ARE YOU LOOKING FOR?
      *
      This field is required
      Total quantity you need
      *
      This field is required
      *
      This field is required
      Email format error
      Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
      This field is required
      Telephone information is wrong!
      Send Message
      http://www.sy-duoduo.com.cn/uploadfiles/128.1.164.27/webid501/source/202206/165485017630.jpg
      • Product Specifications
      • Quality Assurance
      • Application and Processing
      • Our Services

      l Torque Ripple Smoothing

      l Microstep Emulation

      l Advanced Current Control

      l Anti-Resonance


      These drives offer best-in-class current control for optimal smoothness and torque, robust and flexible on-board control options.


      Slection Guide

      ModeSD3SD5SD9
      Power Supply12~48VDC24~48VDC24~75VDC
      Maximum peak current3A5.5A9.8A
      Control ModesStep & DirectionStep & Direction/CW& CCW
      Subdivisions1~128
      Control Signal Voltage4~28VDC
      Weight140g300g
      Dimensions92×57×21mm118×76×34mm

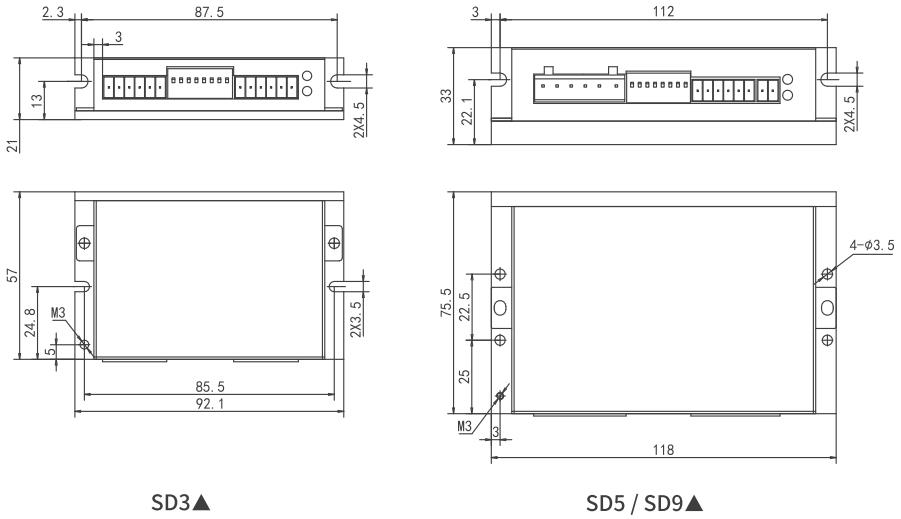

      Dimensions(Unit: mm)

      nema 17 motor driver Dimensions


      Product Application

      Baolong products are widely used in textile machinery, medical equipment, communication equipment, security systems, vehicle manufacturing, as well as robotics, logistics warehousing, industrial automation and other industries. Baolong's R&D team is always ready to meet the increasingly differentiated needs of the market.



      Why do we use Brushless Motor?

      Brushless motors offer high performance, good speed-torque characteristics, long life and low maintenance costs, making them ideal for manufacturing applications.
