STB Series Servo Drives Motor Drive

· Specially Designed For Positioning Control

· Inherited High Performance

· Various in Command Filtering And Vibration Suppression

· I/O Defubution,and logic programmable

Inquire Now

Product Specifications
Quality Assurance
Application and Processing
Our Services

l Specially Designed For Positioning Control

l Inherited High Performance

l Various in Command Filtering And Vibration Suppression

l I/O Defubution,and logic programmable

The product designed with exquisite appearance, small size, wide system output range, strong adaptability. It will help customer automatically identify the load inertia, beside being a very user friendly system. The product is designed to ensure the mechanical equipment applied is always stable and working under the most efficient operating condition. Since it is equipped with kinds of rich filter, it will help the machine effectively reduce various types of mechanical vibration to improve the machine reacting speed. With using STB series products, we ensure your machine equipments always perform under high speed and high performance positioning control.

Slection Guide

Mode	STB1042	STB2072	STB1102	STB3203
Power Supply	220VAC
Power	400W	750W	1000W	2000W
Control Mode	Position, Internal Velocity
Input channel	4 input, function and logic programmable by parameter
Output channel	utput(common cathode) function and logic programmable by parameter
Encorder Resolution	2500ppr/17bit 23bit
Weight	0.8kg	1.4kg		1.7kg
Dimensions	150×135×55mm	150×135×65mm		150×170×85.5mm

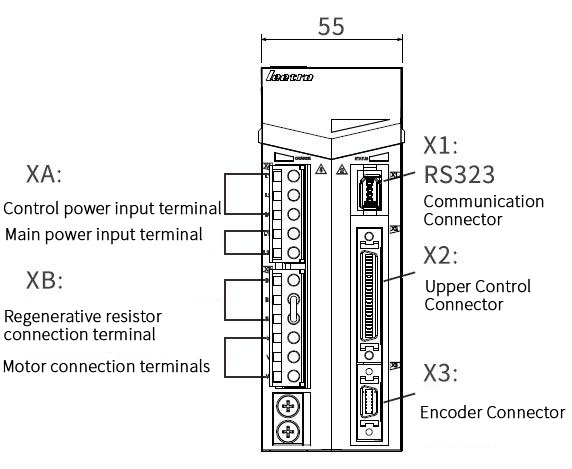

Dimensions(Unit: mm)

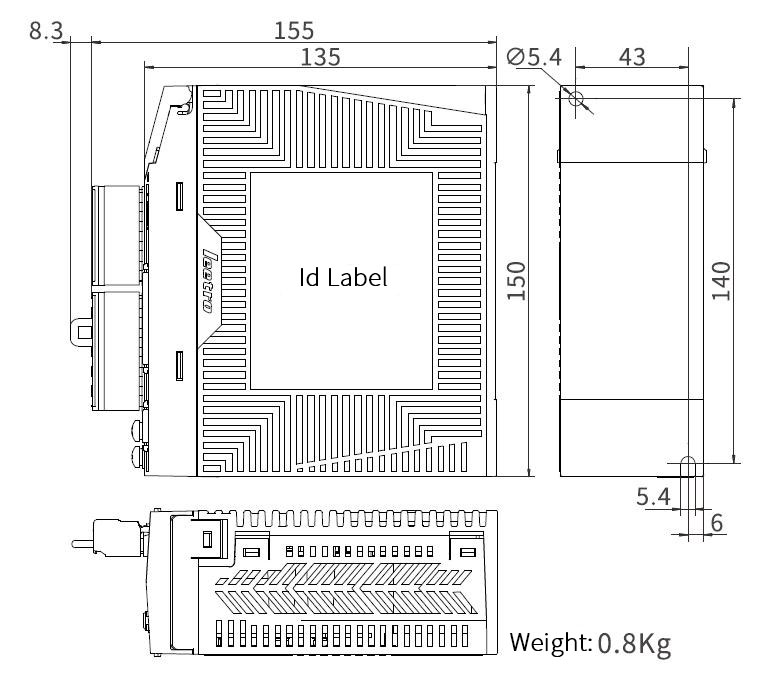

STB1042

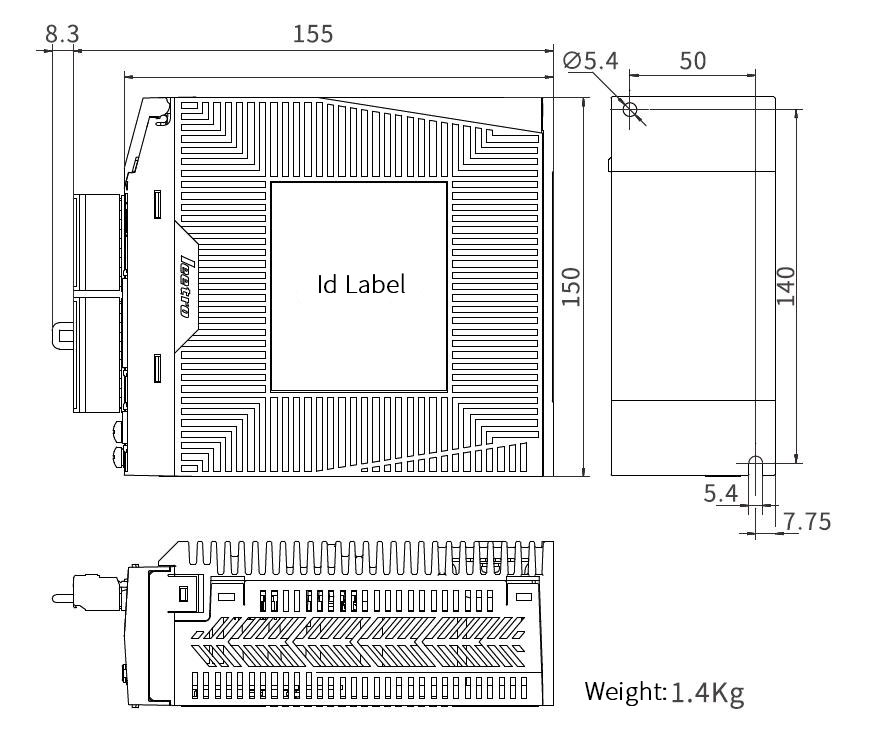

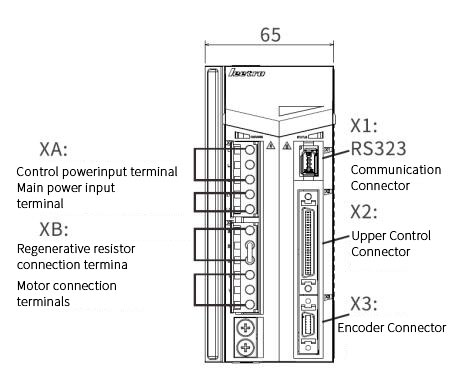

STB2072/STB1102

27.1.jpg 26.2.jpg

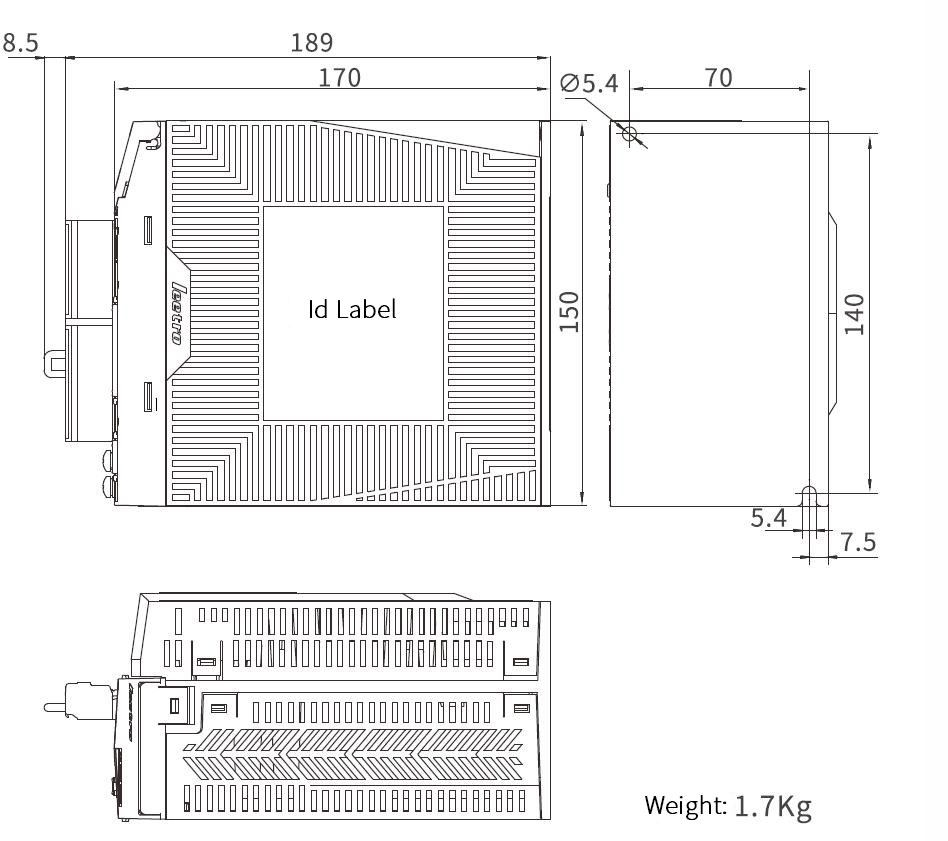

STB3203


Product Application

Baolong products are widely used in textile machinery, medical equipment, communication equipment, security systems, vehicle manufacturing, as well as robotics, logistics warehousing, industrial automation and other industries. Baolong's R&D team is always ready to meet the increasingly differentiated needs of the market.


Why do we use Brushless Motor?

Brushless motors offer high performance, good speed-torque characteristics, long life and low maintenance costs, making them ideal for manufacturing applications.
