Brushless DC motor is composed of motor body and driver, which is a typical mechatronics product. The stator windings of the motor are mostly made of three - phase symmetric star connection, which is very similar to three - phase asynchronous motor. A magnetized permanent magnet is attached to the rotor of the motor. In order to detect the polarity of the rotor, a position sensor is installed in the motor. The driver is composed of power electronic devices and integrated circuits, etc. Its functions are: to accept the start, stop and brake signals of the motor to control the start, stop and brake of the motor; It receives position sensor signals and positive and negative rotation signals, which are used to control on and off of each power tube of the inverter bridge and generate continuous torque. Accept speed instruction and speed feedback signal, used to control and adjust the speed; Provide protection, display, and so on.
0
Basic Size: 35mm
Length (mm): 49mm-69mm
Rated Voltage (VDC): 24VDC
Rated Torque (N.m): 0.04-0.08N.m
Rated Power (W): 16-32W
Rated Speed (Rpm): 4000Rpm
Product Description
The 14WLSE series DC brushless motor combines compact design with advanced control technology, providing an ideal solution for automation fields that require high efficiency and precision operation. This series of motors is particularly suitable for use in space limited environments, such as precision machinery and automation devices. Its brushless construction reduces maintenance requirements, improves operational lifespan and efficiency. The motor is equipped with a built-in position sensor and an efficient electronic drive system, ensuring precise response to various control commands and achieving seamless power output and speed adjustment. This makes the 14WLSE series motors an ideal choice for those seeking reliable, high-performance electric solutions.
baolong motor offer brushless linear motors, hollow shaft BLDC motors, or low RPM brushless motors overview
A brushless linear motor is a type of motor that converts electrical energy directly into linear motion, as opposed to rotational motion like traditional motors. It typically consists of a stator and a forcer (or mover) that contains magnets. By applying current to the stator windings, a magnetic field is generated, which interacts with the magnetic field of the forcer to produce linear motion. Brushless linear motors offer advantages such as high acceleration, precise positioning, high efficiency, and low maintenance. They are used in various applications such as robotics, machine tools, semiconductor manufacturing, and more.
A hollow shaft BLDC motor, also known as a through-hole BLDC motor, features a central opening or hollow shaft that extends through the center of the motor. This design allows for convenient passage of cables, optics, or other mechanical components through the motor's axis. Hollow shaft BLDC motors are commonly used in applications where space-saving, compact design, and integration with other components are essential. They find applications in robotics, rotary tables, automation systems, and other fields where the ability to pass through a shaft is required.
A low RPM brushless motor refers to a brushless motor designed to operate at low rotational speeds. The RPM (rotations per minute) of a motor depends on its design, voltage, and load conditions. Low RPM brushless motors are typically designed with specific gear ratios, pole configurations, or winding arrangements to achieve low speeds while maintaining torque output.
Electrical Specifications
| Motor Model | 14WLSE241640 | 14WLSE242540 | 14WLSE243340 |
| Number of Phase | 3 | ||
| Number of Poles | 8 | ||
| Rated Voltage (VDC) | 24 | ||
| Rated Speed (Rpm) | 4000 | ||
| Rated Torque (N.m) | 0.04 | 0.06 | 0.08 |
| Rated Power (W) | 16.7 | 25 | 33.5 |
| Rated Current (A) | 0.8 | 1.25 | 1.7 |
| Peak Current (A) | 2.4 | 3.75 | 5.2 |
| Peak Torque (N.M) | 0.12 | 0.18 | 0.24 |
| Rotor Inertia (kg.cm2) | 0.02 | 0.02 | 0.03 |
| Torque Constant (N.m/A) | 0.05 | 0.05 | 0.05 |
| Torque Constant (V/krpm) | 4.5 | 4.6 | 4.5 |
| Line-Line Resistance (Ω) | 2.5 | 3.1 | 3.4 |
| Line-Line Inductance (mH) | 1.1 | 1.2 | 1.3 |
| Length (mm) | 49 | 59 | 69 |
| Weight (kg) | 0.34 | 0.5 | 0.66 |
*Note: We can manufacture products according to customer's requirements.

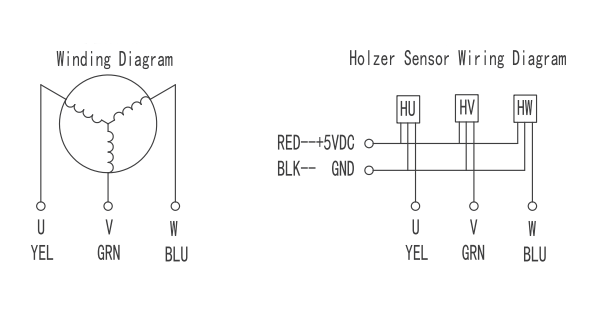

Wiring Diagram

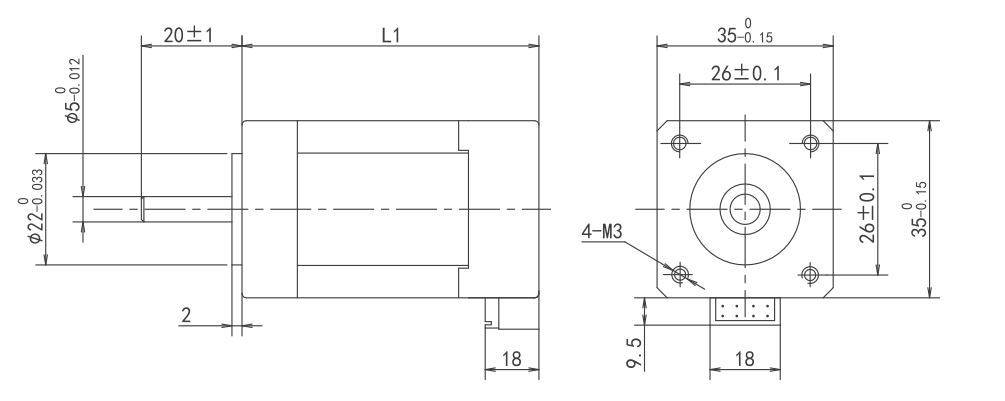

Dimensions(Unit: mm)
