Planetary deceleration brushless motor has the characteristics of high precision, high rigidity, high load, high efficiency, high speed ratio, high life, low inertia, low vibration, low noise, low temperature rise, beautiful appearance, light structure, easy installation, accurate positioning and so on.
0
Basic Size: 42mm
Length (mm): 58mm-98mm
Rated Voltage (VDC): 24VDC
Rated Torque (N.m): 0.09-0.27N.m
Rated Power (W): 28-84W
Rated Speed (Rpm): 3000Rpm
Product Description
42PSR-42BSSE Series Planetary Gearbox Circular DC Brushless Motor also has the characteristics of low noise, low vibration, and low temperature rise, ensuring the comfort and safety of the working environment.
The Brushless Motor with Planetary Gearbox is a groundbreaking solution that combines the efficiency and precision of brushless motor technology with the torque multiplication and compactness of a planetary gearbox. This motor configuration offers exceptional performance, reliability, and control.
At the core of the system are the precision planetary gearboxes, which ensure reliable functionality and precise torque transmission. These precision planetary gearboxes are designed to deliver superior performance, reduced maintenance, and enhanced efficiency. With their compact size and high torque density, they are well-suited for applications that require precise control and high power transmission.
Complementing the precision planetary gearboxes is the brushless DC motor with gearbox. This motor configuration integrates the benefits of brushless motor technology with the added advantage of a gearbox. The brushless DC motor with gearbox offers exceptional efficiency, reduced maintenance requirements, and precise speed control. It is widely used in applications where high torque and precise speed regulation are essential.
The brushless motor with planetary gearbox, in particular, combines the advantages of brushless motor technology with the torque multiplication capabilities of a planetary gearbox. This configuration provides excellent power density, compactness, and precise control. It is commonly employed in robotics, industrial automation, and other applications that demand high performance and precision.
Electrical Specifications
| Motor Model | 42BSSE242830 | 42BSSE245630 | 42BSSE248430 |
| Rated Voltage(VDC) | 24 | ||
| Rated Speed(Rpm) | 3000 | ||
| Rated Torque(N.m) | 0.09 | 0.18 | 0.27 |
| Rated Power(W) | 28 | 56 | 84 |
| Length(mm) | 58 | 78 | 98 |
*Note: We can manufacture products according to customer's requirements.
Gearbox Electrical Specifications
| Reducer Series | 1 | 2 |
| Transmission efficiency | 95% | 90% |
| Max radial load | 200N | 200N |
| Max axial load | 100N | 100N |
| Transmission torque | 6N.m | 12N.m |
| Reduction Ratio | 5 ,10 | 20,25,40,45,50,100 |
| Length(mm) | 28.5 | 38 |
Wiring Diagram

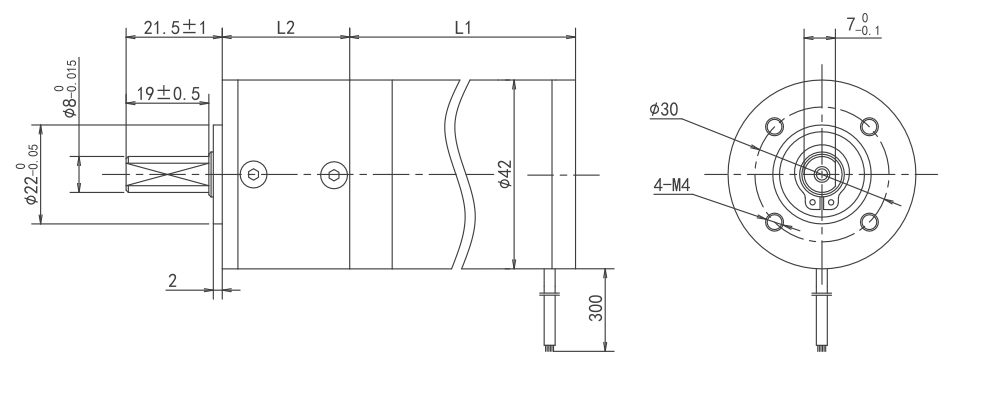

Dimensions(Unit: mm)
