Planetary deceleration brushless motor has the characteristics of high precision, high rigidity, high load, high efficiency, high speed ratio, high life, low inertia, low vibration, low noise, low temperature rise, beautiful appearance, light structure, easy installation, accurate positioning and so on.
0
Basic Size: 36mm
Length (mm): 59mm-79mm
Rated Voltage (VDC): 24VDC
Rated Torque (N.m): 0.04-0.08N.m
Rated Power (W): 16-32W
Rated Speed (Rpm): 4000Rpm
Product Description
36PSR-36RLSE Series Planetary Gearbox Circular DC Brushless Motor Adopting a planetary gearbox design and advanced DC brushless motor technology, this motor has efficient and stable performance.
The Round Gearbox Brushless Motor revolutionizes the world of motion control with its remarkable combination of brushless technology and the precision of robust gearbox systems. This motor system features the exceptional performance of the brushless planetary gear motor, the reliability of precision planetary gearboxes, and the power of the gearbox brushless motor.
The brushless planetary gear motor, a pivotal component of the Round Gearbox Brushless Motor, showcases unparalleled performance with its brushless design and integrated planetary gearbox. This brushless planetary gear motor delivers exceptional torque, accuracy, and compactness, making it the perfect choice for applications that require both strength and precision.
The precision planetary gearboxes within the Round Gearbox Brushless Motor ensure reliable functionality and precise control. These precision planetary gearboxes provide superior performance, reduced maintenance, and enhanced efficiency, making them an indispensable solution for a wide range of applications.
Completing this trio of exceptional components is the gearbox brushless motor, which combines the power and efficiency of brushless motor technology with the torque multiplication and compactness of a gearbox. The gearbox brushless motor offers unmatched performance, reduced maintenance requirements, and precise control, making it an ideal choice for applications in various industries.
Electrical Specifications
| Motor Model | 36RLSE241640 | 36RLSE242540 | 36RLSE243340 |
| Rated Voltage(VDC) | 24 | ||
| Rated Speed(Rpm) | 4000 | ||
| Rated Torque(N.m) | 0.04 | 0.06 | 0.08 |
| Rated Power(W) | 16.7 | 25 | 33.5 |
| Length(mm) | 59 | 69 | 79 |
*Note: We can manufacture products according to customer's requirements.
Gearbox Electrical Specifications
| Reducer Series | 1 | 2 | 3 |
| Transmission efficiency | 90% | 81% | 73% |
| Max radial load | 40N | 40N | 40N |
| Max axial load | 20N | 20N | 20N |
| Transmission torque | 0.3N.m | 1.2N.m | 2.5N.m |
| Reduction Ratio | 3.7,5.18,6.75 | 14,19,25,27,35,45 | 51,71,93,100,139,181,236,307 |
| Length(mm) | 25.6 | 34 | 42 |
Wiring Diagram

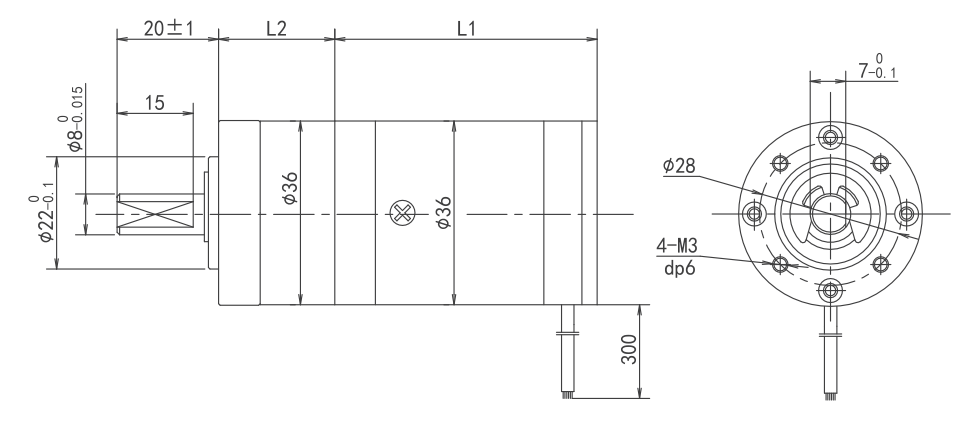

Dimensions(Unit: mm)
