Brushless DC motor is composed of motor body and driver, which is a typical mechatronics product. The stator windings of the motor are mostly made of three - phase symmetric star connection, which is very similar to three - phase asynchronous motor. A magnetized permanent magnet is attached to the rotor of the motor. In order to detect the polarity of the rotor, a position sensor is installed in the motor. The driver is composed of power electronic devices and integrated circuits, etc. Its functions are: to accept the start, stop and brake signals of the motor to control the start, stop and brake of the motor; It receives position sensor signals and positive and negative rotation signals, which are used to control on and off of each power tube of the inverter bridge and generate continuous torque. Accept speed instruction and speed feedback signal, used to control and adjust the speed; Provide protection, display, and so on.
0
Basic Size: 80mm
Length (mm): 99mm-109mm
Rated Voltage (VDC): 48VDC
Rated Torque (N.m): 0.6-0.8N.m
Rated Power (W): 188-250W
Rated Speed (Rpm): 3000Rpm
Product Description
The brushless design of the 32BSTE series motors means lower maintenance requirements and longer operating life, reducing overall cost of ownership. The built-in high-precision sensors and advanced electronic control system provide precise feedback and control, thereby improving the efficiency and response speed of the entire system. These characteristics make the 32BSTE series motors an ideal choice for complex applications seeking high efficiency, high torque, and long-lasting stability, specifically manufactured for industrial applications that require strong power and high reliability. The design of this series of motors emphasizes practicality and high performance, enabling them to provide excellent solutions in various industrial environments.
When it comes to brushless motors, the controller for brushless motor 48v plays a vital role in ensuring efficient and precise motor control. The controller acts as the interface between the motor and the power supply, regulating the power input and providing the necessary signals for proper commutation and operation. A reliable and well-designed controller for brushless motor 48v ensures smooth acceleration, deceleration, and speed control, making it an essential component in various applications.
Another variant of brushless motors is the frameless brushless DC motor. These motors are characterized by their compact and modular design, where the rotor and stator components are separate entities. Frameless brushless DC motors offer flexibility in terms of installation and integration, as they can be easily mounted within existing systems or structures. This modular design allows for customization and adaptation to specific application requirements, making frameless brushless DC motors a preferred choice in industries such as robotics, aerospace, and automation.
Frameless brushless motors, similar to frameless brushless DC motors, refer to the same category of motors with a modular design. These motors consist of a rotor and stator that can be integrated into existing mechanical structures or systems. Frameless brushless motors offer advantages such as compact size, high power density, and flexible installation options. They are widely used in applications where space is limited or where the motor needs to be integrated seamlessly into existing assemblies, such as in medical devices, industrial automation, and robotics.
Electrical Specifications
| Motor Model | 32BSTE481830 | 32BSTE482530 |
| Number of Phase | 3 | |
| Number of Poles | 8 | |
| Rated Voltage (VDC) | 48 | |
| Rated Speed (Rpm) | 3000 | |
| Rated Torque (N.m) | 0.6 | 0.8 |
| Rated Power (W) | 188 | 250 |
| Rated Current (A) | 5 | 7 |
| Peak Current (A) | 15 | 21 |
| Peak Torque (N.M) | 1.8 | 2.4 |
| Rotor Inertia (kg.cm2) | 0.6 | 0.7 |
| Torque Constant (N.m/A) | 0.11 | 0.11 |
| Torque Constant (V/krpm) | 10.5 | 10.5 |
| Line-Line Resistance (Ω) | 0.9 | 0.7 |
| Line-Line Inductance (mH) | 0.7 | 0.5 |
| Length (mm) | 99 | 109 |
| Weight (kg) | 1.5 | 1.7 |
*Note: We can manufacture products according to customer's requirements.
Wiring Diagram

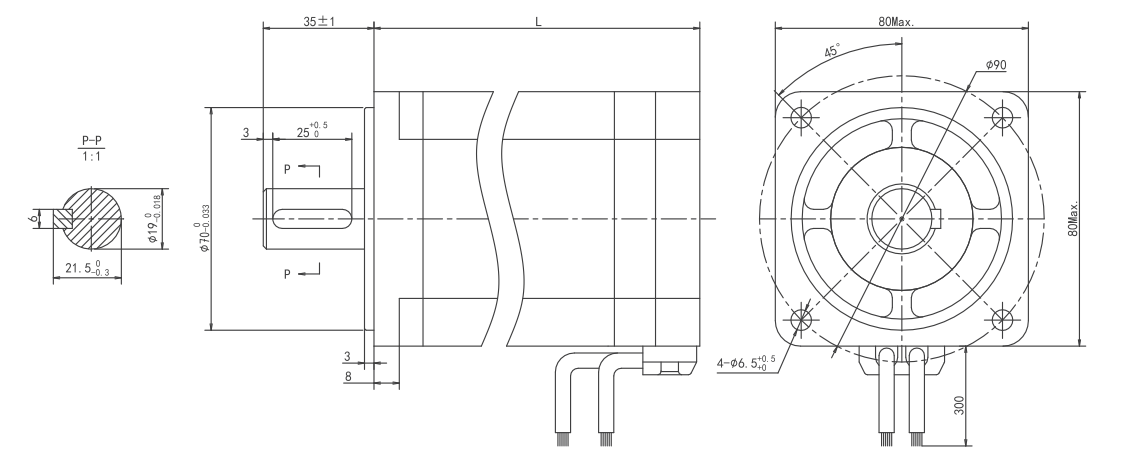

Dimensions(Unit: mm)
