Product Description
The 75EL series external rotor brushless motor is a high-performance and high-efficiency industrial grade motor known for its stable performance and reliable operation.
The out runner type bldc motor is an innovative motor design known for its distinctive configuration and high power output. This out runner type bldc motor features an external rotor that surrounds the stator, creating a large diameter and providing enhanced torque output. The outrunner design enables efficient heat dissipation and improved power density, making it suitable for applications that require high power output.
The high power output electric brushless outrunner is a key characteristic of this motor type. With its unique configuration, the outrunner motor can deliver exceptional power, making it well-suited for applications where a high level of power is required, such as electric vehicles, drones, and industrial machinery.
Furthermore, the outrunner motor excels in delivering high torque at low RPM. This high torque low RPM DC electric motor configuration is particularly advantageous in applications that demand substantial torque output at lower rotational speeds. It provides the necessary strength and control to handle heavy loads or challenging tasks.
Electrical Specifications
| Motor Model | 75ELTH249030 | 75ELTH241430 | 75ELTH241830 |
| Number of Phase | 3 |
| Number of Poles | 16 |
| Rated Voltage (VDC) | 24 |
| Rated Speed (Rpm) | 3000 |
| Rated Torque (N.m) | 0.3 | 0.45 | 0.6 |
| Rated Power (W) | 90 | 140 | 180 |
| Rated Current (A) | 5.8 | 8.9 | 11.6 |
| Peak Current (A) | 17.4 | 26.7 | 34.8 |
| Peak Torque (N.M) | 0.9 | 1.35 | 1.8 |
| Rotor Inertia (kg.cm2) | 1.5 | 1.9 | 2.3 |
| Torque Constant (N.m/A) | 0.05 | 0.05 | 0.05 |
| Torque Constant (V/krpm) | 4.5 | 4.5 | 4.5 |
| Line-Line Resistance (Ω) | 0.5 | 0.4 | 0.3 |
| Line-Line Inductance (mH) | 0.2 | 0.1 | 0.05 |
| Length (mm) | 26.3 | 31.3 | 36.3 |
| Weight (kg) | 0.5 | 0.7 | 0.9 |
*Note: We can manufacture products according to customer's requirements.

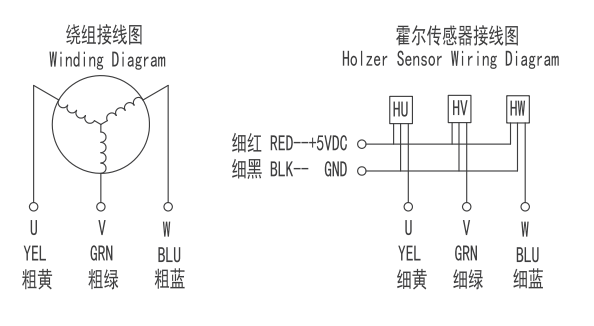

Wiring Diagram

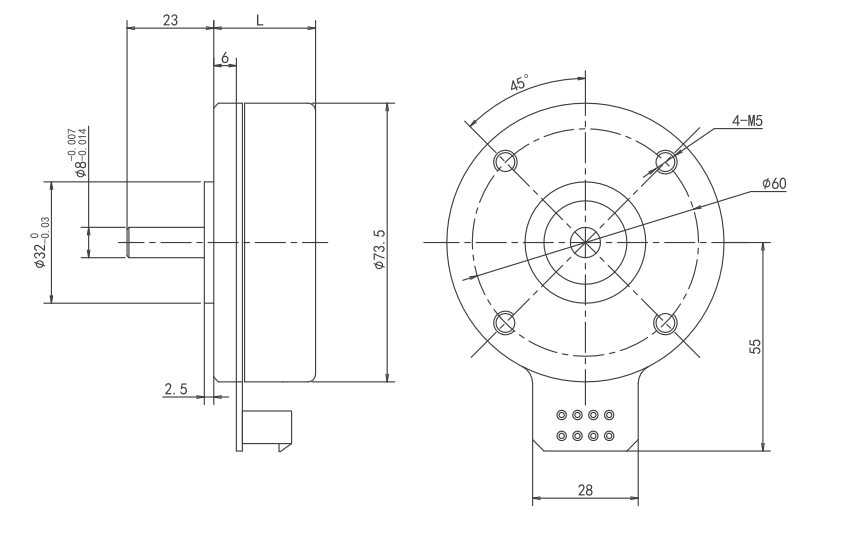

Dimensions(Unit: mm)
