Planetary deceleration brushless motor has the characteristics of high precision, high rigidity, high load, high efficiency, high speed ratio, high life, low inertia, low vibration, low noise, low temperature rise, beautiful appearance, light structure, easy installation, accurate positioning and so on.
0
Basic Size: 52mm
Length (mm): 59mm-99mm
Rated Voltage (VDC): 24VDC
Rated Torque (N.m): 0.1-0.3N.m
Rated power (W): 30-90W
Rated Speed (Rpm): 3000Rpm
Product Description
52PSR-52BSSE Series Planetary Gearbox Circular DC Brushless Motor also has the characteristics of low noise, low vibration, and low temperature rise, ensuring the comfort and safety of the working environment. Compact in structure, easy to install, suitable for various occasions with limited space. Its reliability and durability make it an ideal choice for industrial automation equipment and mechanical transmission systems.
The Planetary Gearbox for Brushless Motor is a highly efficient and versatile solution that combines the benefits of a planetary gearbox with the power and precision of a brushless motor.
At the heart of this system is the planetary gearbox, which consists of multiple gears arranged in a planetary configuration. The planetary gearbox provides high torque multiplication, smooth operation, and excellent load distribution, making it ideal for applications that require precise control and high power transmission.
The gearbox is specifically designed to be paired with a brushless motor, also known as a bldc motor gear. The brushless motor offers numerous advantages over conventional brushed motors, including higher efficiency, lower maintenance requirements, and improved reliability. When combined with a planetary gearbox, the brushless motor can deliver even higher torque and performance.
Whether you need a planetary gearbox for a brushless motor, a BLDC motor gear, or a brushless gearbox, this motor system provides a comprehensive solution to meet your specific needs. It combines the efficiency and precision of a planetary gearbox with the power and reliability of a brushless motor, offering enhanced performance and versatility in your applications.
Electrical Specifications
| Motor Model | 52BSSE243030 | 52BSSE246030 | 52BSSE249030 |
| Rated Voltage(VDC) | 24 | ||
| Rated Speed(Rpm) | 3000 | ||
| Rated Torque(N.m) | 0.1 | 0.2 | 0.3 |
| Rated Power(W) | 31 | 63 | 94 |
| Length(mm) | 59 | 79 | 99 |
*Note: We can manufacture products according to customer's requirements.
Gearbox Electrical Specifications
| Reducer Series | 1 | 2 |
| Transmission efficiency | 90% | 81% |
| Max radial load | 200N | 200N |
| Max axial load | 100N | 100N |
| Transmission torque | 6N.m | 12N.m |
| Reduction Ratio | 5,10 | 20,25,35,40,45,50,100 |
| Length(mm) | 35.5 | 45 |

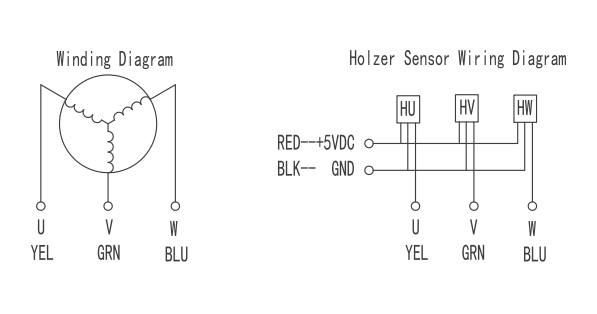

Wiring Diagram

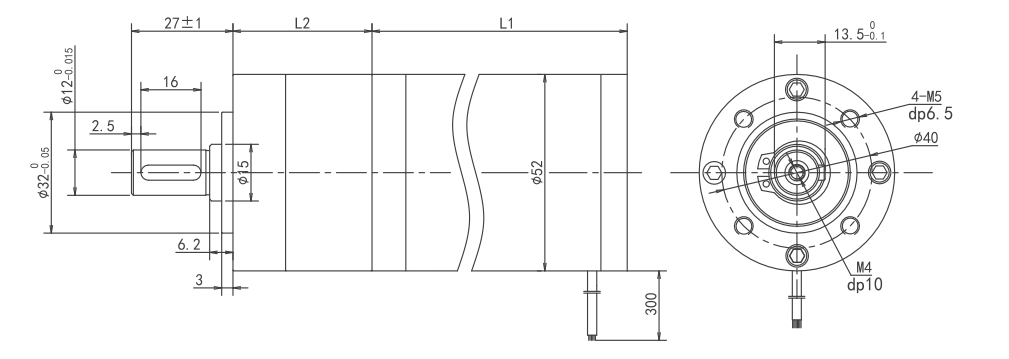

Dimensions(Unit: mm)
