Product Description
The 28RYSE low-voltage series servo motor is a well-designed circular servo motor, whose performance and size make it suitable for various precision control applications with moderate loads. Such as small automated machinery, precision instruments, and robotics technology. Its circular design and adjustable length give the motor a high degree of flexibility during installation and integration, making it easy to adapt to various design requirements. In addition, the power and torque output provided by this motor enables it to handle various dynamic and static loads, thereby maintaining stable and reliable operation under continuous operation and high performance requirements.
servo motor voltage,servo motor dimensions,torque of a servo motor are crucial factors when working with servo motors.
Consideration of servo motor voltage, servo motor dimensions, and torque is vital for selecting the right motor that aligns with your application's electrical requirements, physical constraints, and performance needs.
servo motor voltage: Servo motors require a specific voltage level, such as 12V, 24V, or 48V, to operate efficiently. It's essential to match the motor's voltage requirement with the power supply or control system to ensure proper functionality.
servo motor dimensions: Servo motors come in various sizes and shapes, with dimensions including length, width, height, and shaft diameter. Understanding the motor's dimensions is crucial for integration and compatibility within your application or system.
torque of a servo motor: The torque of a servo motor represents its rotational force or strength. It indicates the motor's ability to exert a twisting motion and is measured in units like ounce-inches (oz-in) or Newton-meters (Nm). Selecting a servo motor with appropriate torque ensures it can meet the requirements of your application, including load demands, acceleration, and speed requirements.
Electrical Specifications
| Motor Model | 28RYNE482530 | 28RYNE483830 | 28RYNE485030 |
| Number of Phase | 3 |
| Number of Poles | 8 |
| Rated Voltage (VDC) | 48 |
| Rated Speed (Rpm) | 3000 |
| Rated Torque (N.m) | 0.08 | 0.12 | 0.16 |
| Rated Power (W) | 25 | 38 | 50 |
| Rated Current (A) | 0.9 | 1.3 | 1.8 |
| Peak Current (A) | 2.7 | 3.9 | 5.4 |
| Peak Torque (N.M) | 0.24 | 0.36 | 0.48 |
| Rotor Inertia (kg.cm2) | 0.018 | 0.023 | 0.028 |
| Torque Constant (N.m/A) | 0.11 | 0.11 | 0.11 |
| Torque Constant (V/krpm) | 3.5 | 3.5 | 3.5 |
| Line-Line Resistance (Ω) | 3.3 | 2.8 | 2.3 |
| Line-Line Inductance (mH) | 2.3 | 1.8 | 1.3 |
| Length (mm) | 49 | 59 | 69 |
| Weight (kg) | 0.4 | 0.6 | 0.8 |
| Encoder Resolution (P/R) | 1000, 1024, 2500 |
*Note: We can manufacture products according to customer's requirements.
Wiring Diagram

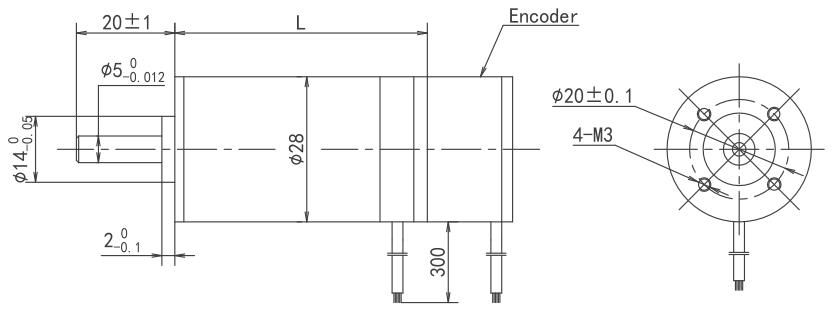

Dimensions(Unit: mm)
How Does Baolong Ensure Product Quality?
Through more professional technical support andservices to help them create sustainable value, win the trust and respect of customers home and abroad.During the past 20 years since establishment, our company has focused on the technica team building, constantly improving product quality.
Strict production process control
Carefully planning and controlling the production process of brushless motors to ensure that each step complies with standards and specifications. Using advanced production equipment and technology to improve production efficiency and product consistency.
Establishing a comprehensive quality inspection and testing system, including inspections of raw materials, components, and final products, among other stages. Using appropriate testing equipment and methods to ensure that the products meet the specified technical specifications and performance requirements.
Sound quality inspection and testing
Comprehensive product validation and certification
Conducting comprehensive validation and certification of brushless motor products to ensure compliance with international and industry standards. This may include electrical performance testing, temperature and humidity testing, durability testing, and so on.
Establishing a sound after-sales service system to promptly address customer quality issues and complaints. Analyzing and improving product quality issues to prevent similar problems from recurring and providing customers with satisfactory solutions.
Establishing an after-sales service system
Ordering Process
Analysis Design
Confirm Drawings
Make Rotor and Stator
Assembly
Test Inspection
Packaging and Delivery
Product Application
Baolong products are widely used in textile machinery, medical equipment, communication equipment, security systems, vehicle manufacturing, as well as robotics, logistics warehousing, industrial automation and other industries. Baolong's R&D team is always ready to meet the increasingly differentiated needs of the market.
Industry Six Axis Collaborative
3-axis Desktop Education Robotic Arm
Embroidery Machine
Sock Weaving Machine
Transmission Equipment
Coffee Machines
Logistics Sorting
AGV
Why do we use Servo Motor?
The servo motor can control the speed, position accuracy is very accurate, can convert the voltage signal to the torque and speed to drive the control object. The rotor speed of the servomotor is controlled by the input signal and can respond quickly.
