Brushless DC motor is composed of motor body and driver, which is a typical mechatronics product. The stator windings of the motor are mostly made of three - phase symmetric star connection, which is very similar to three - phase asynchronous motor. A magnetized permanent magnet is attached to the rotor of the motor. In order to detect the polarity of the rotor, a position sensor is installed in the motor. The driver is composed of power electronic devices and integrated circuits, etc. Its functions are: to accept the start, stop and brake signals of the motor to control the start, stop and brake of the motor; It receives position sensor signals and positive and negative rotation signals, which are used to control on and off of each power tube of the inverter bridge and generate continuous torque. Accept speed instruction and speed feedback signal, used to control and adjust the speed; Provide protection, display, and so on.
0
Basic Size: 60mm
Length (mm): 66mm-108mm
Rated Voltage (VDC): 48VDC
Rated Torque (N.m): 0.25-0.75N.m
Rated Power (W): 78-234W
Rated Speed (Rpm): 3000Rpm
Product Description
The 24WLSE series motors significantly improve efficiency and reliability through their brushless technology, which avoids the wear issues common with traditional brushed motors. This technology combines high-performance permanent magnet materials with advanced electronic drive technology to achieve superior performance and low operating costs. In addition, the built-in high-precision sensor provides data support for precise speed and position control, making the motor particularly suitable for use in automated production lines, robotic systems and other high-tech equipment that require strict speed and torque control.
These characteristics make the 24WLSE series motors ideal for industrial applications seeking technical advantages and long-term reliability.
Brushless motors are advanced and efficient devices widely used in various applications. In the context of brushless motors, we can explore the features of a 48V AC motor, a single phase brushless DC motor, and options brushless dc electric motor for sale.
The 48V AC motor is a robust and reliable motor designed to operate efficiently with a 48-volt AC power supply. With its optimized design and high-quality construction, the 48V AC motor delivers reliable performance and can be found in applications such as HVAC systems, industrial equipment, and electric vehicles.
A single phase brushless DC motor is another variant of brushless motor technology. These motors utilize a single phase power supply and employ electronic commutation to achieve precise control of speed and torque. Single phase brushless DC motors are commonly used in appliances, pumps, fans, and other small-scale applications where compact size, efficiency, and quiet operation are desired.
Electrical Specifications
| Motor Model | 24WSTE487830 | 24WSTE481530 | 24WSTE482330 |
| Number of Phase | 3 | ||
| Number of Poles | 8 | ||
| Rated Voltage (VDC) | 48 | ||
| Rated Speed (Rpm) | 3000 | ||
| Rated Torque (N.m) | 0.25 | 0.5 | 0.75 |
| Rated Power (W) | 78 | 156 | 234 |
| Rated Current (A) | 2.2 | 4.4 | 6.6 |
| Peak Current (A) | 6.6 | 13.2 | 19.8 |
| Peak Torque (N.M) | 0.75 | 1.5 | 2.25 |
| Rotor Inertia (kg.cm2) | 0.5 | 0.9 | 1.3 |
| Torque Constant (N.m/A) | 0.11 | 0.11 | 0.11 |
| Torque Constant (V/krpm) | 10.5 | 10.5 | 10.5 |
| Line-Line Resistance (Ω) | 1.5 | 0.6 | 0.5 |
| Line-Line Inductance (mH) | 1.3 | 0.65 | 0.4 |
| Length (mm) | 66 | 87 | 108 |
| Weight (kg) | 0.9 | 1.25 | 1.6 |
*Note: We can manufacture products according to customer's requirements.
Wiring Diagram

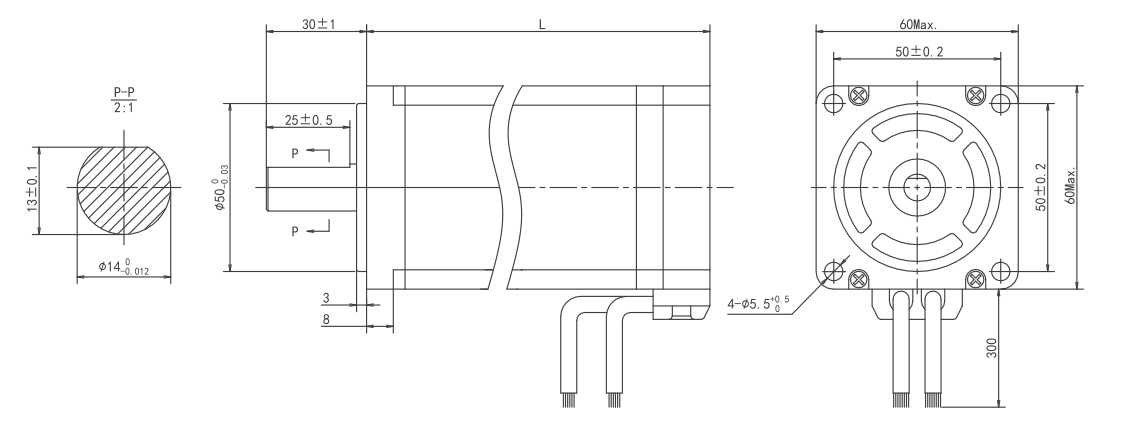

Dimensions(Unit: mm)
