Product Description
Frameless servo motor as the name implies the inorganic shell and other peripheral components, the stator and rotor components are directly assembled in the mechanism to facilitate the high integration of the terminal products and reduce the volume.
The series frameless servo motor introduced by Baolong Motor adopts the multi-slot and multi-pole scheme to realize the high torque density and low cogging torque output of the motor, which makes the structure more compact and the operation more stable. Vacuum glue filling technology is used to assist the filling glue with high thermal conductivity, which makes the heat dissipation of the motor more superior and the temperature rise lower.
Electrical Specifications
| Motor Model | 103SSTH489430 |
| Number of Phase | 3 |
| Number of Poles | 16 |
| Rated Voltage (VDC) | 48 |
| Rated Speed (Rpm) | 3000 |
| Rated Torque (N.m) | 3 |
| Rated Power (W) | 942 |
| Rated Current (A) | 26 |
| Peak Current (A) | 52 |
| Peak Torque (N.M) | 6 |
| Rotor Inertia (kg.cm2) | 0.5 |
| Torque Constant (N.m/A) | 0.1 |
| Torque Constant (V/krpm) | 8.5 |
| Line-Line Resistance (Ω) | 0.05 |
| Line-Line Inductance (mH) | 0.15 |
| Length (mm) | 30 |
| Weight (kg) | 1.4 |
* Note: We can manufacture products according to customer's requirements.
Wiring Diagram

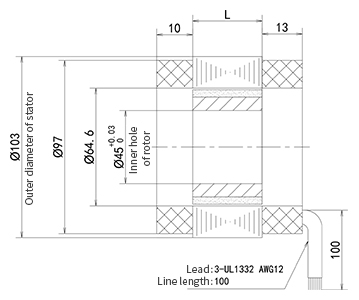

Dimensions(Unit: mm)
