60SSEH series motors Product Description
The 60SSEH series motors are designed with a focus on achieving optimal balance between performance and size, making them an ideal choice for complex systems that require precise control and high torque output. Its multipole design not only improves the response speed and control accuracy of the motor, but also optimizes the energy efficiency ratio and reduces operating costs. Whether in automated assembly, robotics technology, or precision instruments, this motor can provide excellent power solutions.
baolong offer servo motor with integrated drive is no need for separate enclosures or complex wiring connections between components.
integrated servo motor and drive not only saves valuable space but also reduces the chances of wiring errors and streamlines the installation process. Moreover, the integration enables faster communication and synchronization between the motor and drive, resulting in enhanced precision, efficiency, and motion control. Whether in industrial automation, medical equipment, or printing and packaging machinery, the integrated servo motor ,integrated servo drive system delivers reliable and accurate performance. Its compact size, improved functionality, and ease of use make it a sought-after solution for various applications, driving innovation and efficiency in diverse industries.
Electrical Specifications
| Motor Model | 60SSEH481530 |
| Number of Phase | 3 |
| Number of Poles | 16 |
| Rated Voltage(VDC) | 48 |
| Rated Speed(Rpm) | 3000 |
| Rated Torque(N.m) | 0.5 |
| Rated Power(W) | 157 |
| Rated Current(A) | 4.4 |
| Peak Current(A) | 13.2 |
| Peak Torque(N.M) | 1.5 |
| Rotor Inertia(kg.cm2) | 0.15 |
| Torque Constant(N.m/A) | 0.1 |
| Torque Constant(V/krpm) | 9.5 |
| Line-Line Resistance(Ω) | 1.0 |
| Line-Line Inductance(mH) | 1.8 |
| Length(mm) | 20 |
| Weight(kg) | 0.7 |
*Note：We can manufacture products according to customer’s requirements.
Wiring Diagram

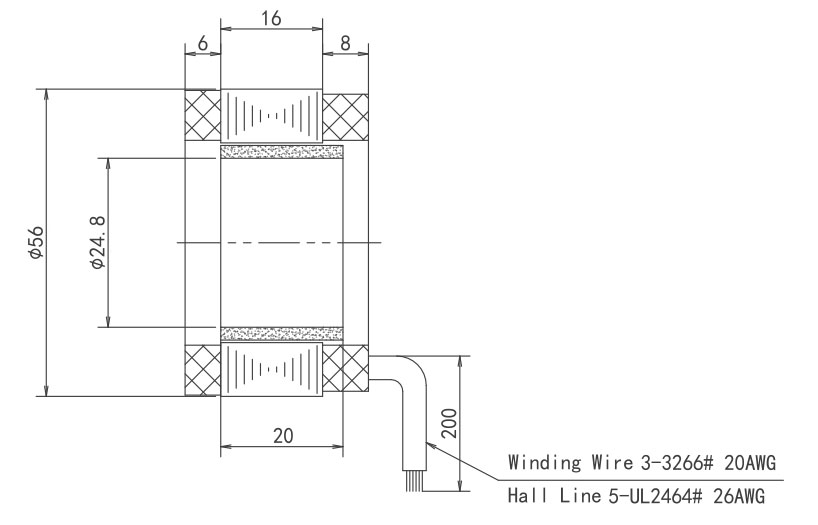

Dimensions(Unit: mm)
How Does Baolong Ensure Product Quality?
Through more professional technical support andservices to help them create sustainable value, win the trust and respect of customers home and abroad.During the past 20 years since establishment, our company has focused on the technica team building, constantly improving product quality.
Strict production process control
Carefully planning and controlling the production process of brushless motors to ensure that each step complies with standards and specifications. Using advanced production equipment and technology to improve production efficiency and product consistency.
Establishing a comprehensive quality inspection and testing system, including inspections of raw materials, components, and final products, among other stages. Using appropriate testing equipment and methods to ensure that the products meet the specified technical specifications and performance requirements.
Sound quality inspection and testing
Comprehensive product validation and certification
Conducting comprehensive validation and certification of brushless motor products to ensure compliance with international and industry standards. This may include electrical performance testing, temperature and humidity testing, durability testing, and so on.
Establishing a sound after-sales service system to promptly address customer quality issues and complaints. Analyzing and improving product quality issues to prevent similar problems from recurring and providing customers with satisfactory solutions.
Establishing an after-sales service system
Ordering Process
Analysis Design
Confirm Drawings
Make Rotor and Stator
Assembly
Test Inspection
Packaging and Delivery
Product Application
Baolong products are widely used in textile machinery, medical equipment, communication equipment, security systems, vehicle manufacturing, as well as robotics, logistics warehousing, industrial automation and other industries. Baolong's R&D team is always ready to meet the increasingly differentiated needs of the market.
Industry Six Axis Collaborative
3-axis Desktop Education Robotic Arm
Embroidery Machine
Sock Weaving Machine
Transmission Equipment
Coffee Machines
Logistics Sorting
AGV
Why do we use Servo Motor?
The servo motor can control the speed, position accuracy is very accurate, can convert the voltage signal to the torque and speed to drive the control object. The rotor speed of the servomotor is controlled by the input signal and can respond quickly.
Who is Baolong Motor?
Changzhou Baolong Motor Co.,Ltd. is a high-tech enterprise specializing in the development, design, production and marketing of stepper motors.Founded in 2004, we adhere to the "innovative product, excellentquality, customer-centered" purpose, focusing on the micro-special motor industry, to provide automationequipment manufacturers with quality motor products. Through more professional technical support andservices to help them create sustainable value, win the trust and respect of customers home and abroad.During the past 20 years since establishment, our company has focused on the technica team building, constantly improving product quality. With a profound technical background and rich experience in motorindustry, we have successively developed stepping servo motor, stepping linear motor，motor driver,DCbrushless motor,AC servo motor, gear box and other products, which are widely used in textile machinery,medical equipment, communications equipment, security systems, vehicle manufacturing, as well as robots,logistics warehousing, industrial automation and other industries.
Why Baolong Is Trusted By 1000+ Global Partners?
Own FactoryWe have our own factory with complete molds and a complete set of production processes.
Production EnvironmentOur production facilities prioritize high standards and environmental sustainability.
Pay Attention to Product QualityWe manufacture all the products of excellent quality and we can always meet the design as customers required.
Free SupportProvide fast and timely delivery, and can answer your questions 24 hours a day.
