The multi-pole torque servo motor has the characteristics of low speed, large torque, strong overload capacity, fast response, good linearity and small torque fluctuation, which can drive the load directly without reducing gear, thus improving the operation accuracy of the system.
0
Basic Size: 76mm
Length (mm): 20mm
Rated Voltage (VDC): 48VDC
Rated Torque (N.m): 1.0N.m
Rated Power (W): 314W
Rated Speed (Rpm): 3000Rpm
76SSEH series servo motor Product Description
The multipole design of the 76SSEH series servo motorenhances its high torque output capability during low-speed operation, while also featuring fast response and precise linear control. The torque fluctuation is small, which means that mechanical vibration and noise are minimized during operation, thereby improving the smoothness of operation and the overall accuracy of the system. These characteristics make the motor particularly suitable for direct drive applications, such as high-precision robot joints, special machinery, and other high-end equipment that require precise torque control.
baolong offer servo motor is Servo systems play a vital role in automation, providing precise control and motion capabilities in various applications. about servo spindle,servo automation,micro servo arm,miniature servo motor introduce：
A servo spindle is a specialized type of servo motor used in machine tools, particularly in CNC machining centers and lathes. It is responsible for driving the spindle, which rotates the cutting tool or workpiece. Servo spindles offer high torque and speed control, enabling precise and efficient machining operations.
Servo automation refers to the integration of servo systems into automated processes. By incorporating servo motors, drives, and controllers, automation systems can achieve precise and dynamic motion control for tasks such as robotic arm movements, conveyor belt positioning, and assembly line operations.
A micro servo arm is a small-sized servo system designed for applications that require compactness and precise control. These servo arms typically consist of a miniature servo motor, a gear mechanism, and an arm or linkage system. Micro servo arms are commonly used in hobby projects, remote-controlled vehicles, miniature robotics, and other small-scale applications. Despite their small size, they offer sufficient torque and accuracy for precise movements.
A miniature servo motor is a compact-sized servo motor designed for applications where space is limited. These motors are commonly used in small-scale automation, medical devices, aerospace equipment, and handheld devices. Miniature servo motors offer high torque-to-size ratios, enabling them to deliver significant power in a small form factor. They provide precise control, efficient operation, and reliable performance in tight spaces.
Electrical Specifications
| Motor Model | 76SSEH483030 |
| Number of Phase | 3 |
| Number of Poles | 16 |
| Rated Voltage(VDC) | 48 |
| Rated Speed(Rpm) | 3000 |
| Rated Torque(N.m) | 1.0 |
| Rated Power(W) | 314 |
| Rated Current(A) | 8.7 |
| Peak Current(A) | 26.1 |
| Peak Torque(N.M) | 3.1 |
| Rotor Inertia(kg.cm2) | 0.38 |
| Torque Constant(N.m/A) | 0.1 |
| Torque Constant(V/krpm) | 9.5 |
| Line-Line Resistance(Ω) | 0.8 |
| Line-Line Inductance(mH) | 1.5 |
| Length(mm) | 20 |
| Weight(kg) | 0.9 |
*Note：We can manufacture products according to customer's requirements.

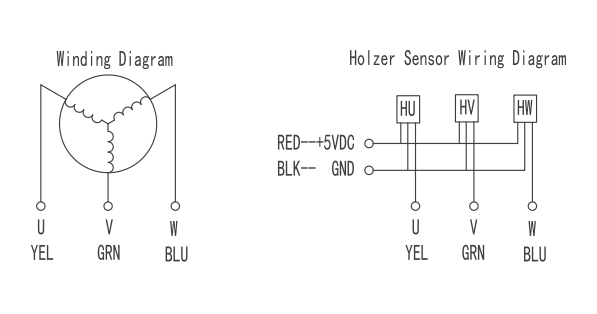

Wiring Diagram

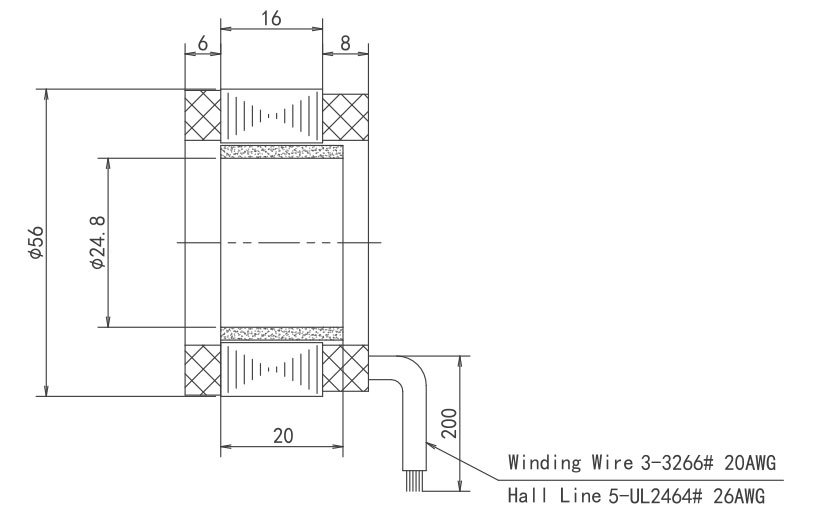

Dimensions(Unit: mm)
