The multi-pole torque servo motor has the characteristics of low speed, large torque, strong overload capacity, fast response, good linearity and small torque fluctuation, which can drive the load directly without reducing gear, thus improving the operation accuracy of the system.
0
Basic Size: 89mm
Length (mm): 20mm
Rated Voltage (VDC): 48VDC
Rated Torque (N.m): 1.5N.m
Rated Power (W): 470W
Rated Speed (Rpm): 3000Rpm
89SSEH series motor Product Description
The multipole design of the 89SSEH series motor optimizes its high torque output in low-speed environments while maintaining fast response and excellent linear control. Its small torque fluctuations mean less mechanical vibration and noise, improving operational smoothness and overall system reliability. In addition, this motor can directly drive the load, eliminating the need for reduction gears, simplifying mechanical design, reducing maintenance costs, and improving the overall accuracy and efficiency of the system.
This type of motor is particularly suitable for applications that require direct drive and high torque output, such as high-precision robotic arms, special vehicle drive systems, and other high-end industrial automation equipment. Its performance and design ensure long-lasting durability and efficient operation in harsh industrial environments.
baolong moto offer DC and AC Servo Motors, DC Servo Motor Specifications, and Direct Drive Servo Motors An Overview
DC and AC servo motors are widely used in various industries for precise motion control applications.
DC servo motors are commonly used in applications that require accurate speed and position control. They operate using a direct current power source and are known for their fast response times, high torque, and wide speed range. DC servo motors are typically controlled using feedback devices such as encoders or resolvers to provide precise position and velocity information.
AC servo motors, on the other hand, operate using alternating current power sources. They offer similar performance characteristics as DC servo motors, including high torque, precise control, and fast response times. AC servo motors are often used in applications where higher power levels or higher speeds are required.
DC servo motors are available in various sizes and specifications to meet different application requirements. Some common specifications of DC servo motors include:
Rated Voltage: The voltage at which the motor is designed to operate.
Rated Power: The maximum power output of the motor.
Rated Speed: The speed at which the motor operates under full load conditions.
Rated Torque: The maximum continuous torque that the motor can deliver.
Feedback Resolution: The resolution of the feedback device used for position and velocity control.
Inertia: The moment of inertia of the motor, which affects its response time and ability to accelerate or decelerate quickly.
Direct drive servo motors, also known as torque motors, offer a unique design where the motor rotor is directly coupled to the load without the need for gears or other transmission components. This eliminates issues related to backlash, mechanical play, and transmission losses, resulting in improved accuracy, responsiveness, and efficiency. Direct drive servo motors are commonly used in high-precision applications such as machine tools, robotics, and semiconductor manufacturing.
Electrical Specifications
| Motor Model | 89SSEH484730 |
| Number of Phase | 3 |
| Number of Poles | 16 |
| Rated Voltage(VDC) | 48 |
| Rated Speed(Rpm) | 3000 |
| Rated Torque(N.m) | 1.5 |
| Rated Power(W) | 470 |
| Rated Current(A) | 13.1 |
| Peak Current(A) | 39.3 |
| Peak Torque(N.M) | 4.5 |
| Rotor Inertia(kg.cm2) | 0.41 |
| Torque Constant(N.m/A) | 0.11 |
| Torque Constant(V/krpm) | 10.5 |
| Line-Line Resistance(Ω) | 0.6 |
| Line-Line Inductance(mH) | 1.1 |
| Length(mm) | 20 |
| Weight(kg) | 1.0 |
*Note：We can manufacture products according to customer's requirements.
Wiring Diagram

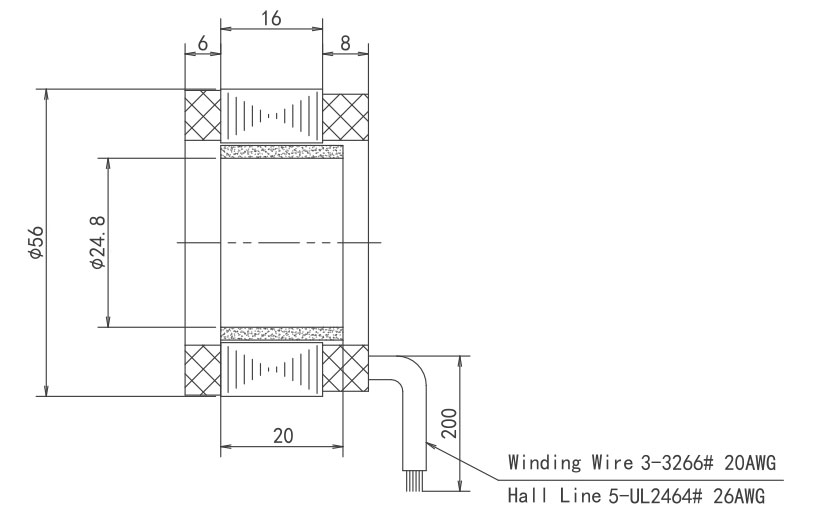

Dimensions(Unit: mm)
