Brushless DC motor is composed of motor body and driver, which is a typical mechatronics product. The stator windings of the motor are mostly made of three - phase symmetric star connection, which is very similar to three - phase asynchronous motor. A magnetized permanent magnet is attached to the rotor of the motor. In order to detect the polarity of the rotor, a position sensor is installed in the motor. The driver is composed of power electronic devices and integrated circuits, etc. Its functions are: to accept the start, stop and brake signals of the motor to control the start, stop and brake of the motor; It receives position sensor signals and positive and negative rotation signals, which are used to control on and off of each power tube of the inverter bridge and generate continuous torque. Accept speed instruction and speed feedback signal, used to control and adjust the speed; Provide protection, display, and so on.
0
Basic Size: 82mm
Length (mm): 80mm-90mm
Rated Voltage (VDC): 48VDC
Rated Torque (N.m): 0.6-0.8N.m
Rated Power (W): 188-250W
Rated Speed (Rpm): 3000Rpm
Product Description
The 82BSTE series motors utilize brushless technology, significantly reducing maintenance costs and improving the operational efficiency and lifespan of the motors. The built-in high-precision sensors support precise speed and position control, making the motor highly suitable for precision engineering applications. Due to its efficient power output and stable performance, this motor is particularly suitable for high-end industrial applications that require strict automation production lines, robotics technology, and other reliable power sources.
The high torque brushless DC motor is specifically designed to deliver exceptional torque output, making it suitable for applications that require high starting torque or heavy load handling. These motors utilize advanced winding configurations and magnetic designs to achieve maximum torque efficiency. They are commonly used in robotics, automation systems, electric vehicles, and industrial machinery, where high torque capabilities are essential for optimal performance.
The brushless motor speed controller, also known as a motor drive or motor controller, is responsible for regulating the speed and controlling the operation of a brushless motor. It receives control signals and feedback from various sensors or encoders, allowing precise speed and position control. The brushless motor speed controller adjusts the power input to the motor, ensuring smooth and accurate speed control. It is commonly used in applications that require precise speed regulation, such as CNC machines, robotics, and electric vehicles.
A brushless dc motor with encoder incorporates an encoder sensor into the motor system. The encoder provides feedback on the motor's rotor position and speed, allowing for accurate control and monitoring of the motor's operation. The encoder sensor can be optical or magnetic, and it provides high resolution position feedback, enabling precise control and closed loop operation. brushless dc motor with encoder are used in applications that require accurate positioning, speed control, and synchronization, such as robotics, motion control systems, and industrial automation.
Electrical Specifications
| Motor Model | 82BSTE481830 | 82BSTE482530 |
| Number of Phase | 3 | |
| Number of Poles | 8 | |
| Rated Voltage (VDC/VAC) | 48 | |
| Rated Speed (Rpm) | 3000 | |
| Rated Torque (N.m) | 0.6 | 0.8 |
| Rated Power (W) | 188 | 250 |
| Rated Current (A) | 5 | 7 |
| Peak Current (A) | 15 | 21 |
| Peak Torque (N.M) | 1.8 | 2.4 |
| Rotor Inertia (kg.cm2) | 0.6 | 0.7 |
| Torque Constant (N.m/A) | 0.12 | 0.11 |
| Torque Constant (V/krpm) | 11 | 10.5 |
| Line-Line Resistance (Ω) | 0.9 | 0.7 |
| Line-Line Inductance (mH) | 0.7 | 0.5 |
| Length (mm) | 80 | 90 |
| Weight (kg) | 1.5 | 1.7 |
*Note: We can manufacture products according to customer's requirements.
Wiring Diagram

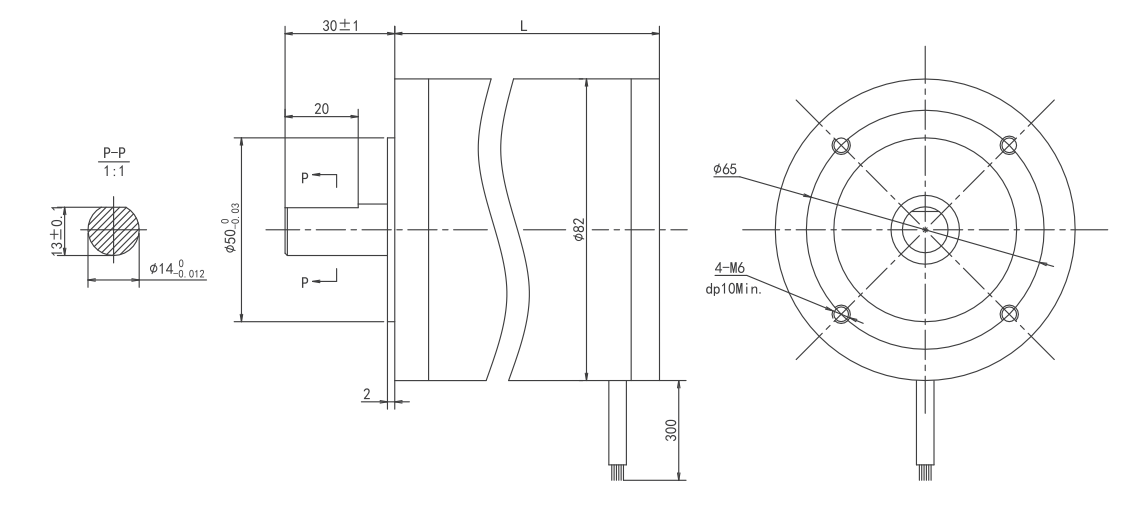

Dimensions(Unit: mm)
