Brushless DC motor is composed of motor body and driver, which is a typical mechatronics product. The stator windings of the motor are mostly made of three - phase symmetric star connection, which is very similar to three - phase asynchronous motor. A magnetized permanent magnet is attached to the rotor of the motor. In order to detect the polarity of the rotor, a position sensor is installed in the motor. The driver is composed of power electronic devices and integrated circuits, etc. Its functions are: to accept the start, stop and brake signals of the motor to control the start, stop and brake of the motor; It receives position sensor signals and positive and negative rotation signals, which are used to control on and off of each power tube of the inverter bridge and generate continuous torque. Accept speed instruction and speed feedback signal, used to control and adjust the speed; Provide protection, display, and so on.
0
Basic Size: 52mm
Length (mm): 58.5mm-98.5mm
Rated Voltage (VDC): 24VDC
Rated Torque (N.m): 0.1-0.3N.m
Rated Power (W): 30-90W
Rated Speed (Rpm): 3000Rpm
Product Description
By utilizing brushless technology, the 52BSSE series motors have achieved low friction and high efficiency during operation, which not only improves the overall performance of the motor but also significantly reduces energy consumption. The built-in high-precision sensor further enhances precise control of speed and position, making this motor particularly suitable for precision automation applications such as precision assembly lines and high-precision testing equipment. These characteristics, combined with their stable and reliable design, make the 52BSSE series motors an ideal choice for industrial and technological applications that require durable and efficient solutions.
The Round Standard Brushless Motor is a versatile motor type widely known for its reliability and performance in various applications. Within this category, we can explore the features of a hollow shaft brushless motor, a brushless crawler motor, and a high torque low-speed brushless DC motor, all of which contribute to the diverse range of options available.
The hollow shaft brushless motor features a unique design where the center of the motor shaft is hollow. This design allows for convenient integration with other mechanical components, such as shafts, gears, or encoders. The hollow shaft brushless motor is commonly used in applications where space is limited, and a direct connection or pass-through is required.
The brushless crawler motor is specifically designed for crawler applications, where high torque and ruggedness are crucial. These motors are commonly used in rock crawlers, RC vehicles, and off-road vehicles. With their high torque output, brushless crawler motors provide excellent crawling capabilities, allowing vehicles to tackle challenging terrains with ease. Additionally, their durability and resistance to dust and moisture make them ideal for outdoor and rugged environments.
A brushless dc motor high torque low speed offers the advantage of both high torque output and precise control at lower speeds. These motors are commonly used in applications that require heavy load handling and fine control, such as conveyor systems, robotics, and lifting equipment. The brushless dc motor high torque low speed delivers powerful performance while maintaining efficiency, making it suitable for tasks that demand both strength and accuracy.
Electrical Specifications
| Motor Model | 52BSSE243030 | 52BSSE246030 | 52BSSE249030 |
| Number of Phase | 3 | ||
| Number of Poles | 8 | ||
| Rated Voltage (VDC) | 24 | ||
| Rated Speed (Rpm) | 3000 | ||
| Rated Torque (N.m) | 0.1 | 0.2 | 0.3 |
| Rated Power (W) | 31 | 63 | 94 |
| Rated Current (A) | 1.8 | 3.6 | 5.4 |
| Peak Current (A) | 5.4 | 10.8 | 16 |
| Peak Torque (N.M) | 0.3 | 0.6 | 0.9 |
| Rotor Inertia (kg.cm2) | 0.55 | 0.75 | 0.95 |
| Torque Constant (N.m/A) | 0.055 | 0.055 | 0.055 |
| Torque Constant (V/krpm) | 5.82 | 5.81 | 5.81 |
| Line-Line Resistance (Ω) | 3 | 1.5 | 0.6 |
| Line-Line Inductance (mH) | 2.5 | 1.3 | 0.65 |
| Length (mm) | 58.5 | 78.5 | 98.5 |
| Weight (kg) | 0.38 | 0.88 | 1.37 |
*Note: We can manufacture products according to customer's requirements.
Wiring Diagram

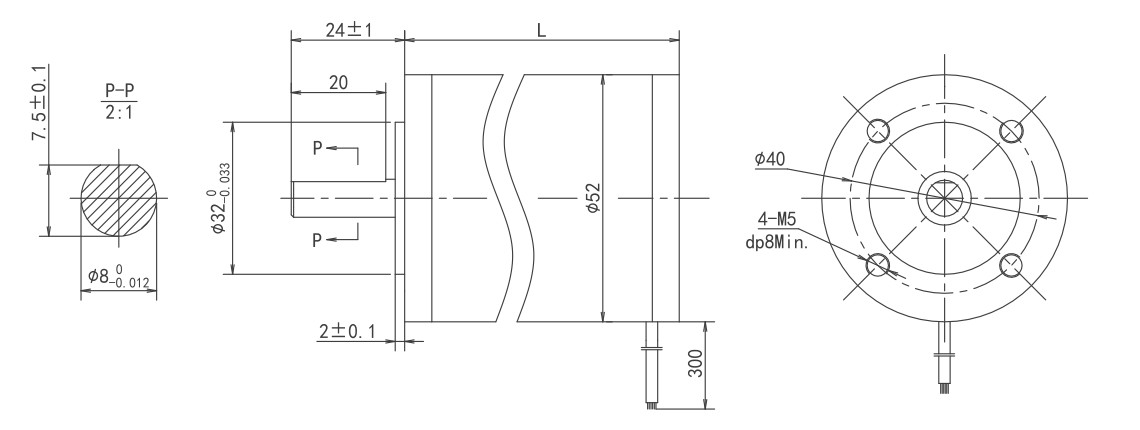

Dimensions(Unit: mm)
