The multi-pole torque servo motor has the characteristics of low speed, large torque, strong overload capacity, fast response, good linearity and small torque fluctuation, which can drive the load directly without reducing gear, thus improving the operation accuracy of the system.
0
Basic Size: 95mm
Length (mm): 20mm
Rated Voltage (VDC): 48VDC
Rated Torque (N.m): 2.0N.m
Rated Power (W): 628W
Rated Speed (Rpm): 3000Rpm
95SSEH series motor Product Description
The multipole design of the 95SSEH series motor enhances its high torque output under low-speed operation, while the fast response and precise linear control characteristics reduce torque fluctuations during operation, which is crucial for improving the operational accuracy and mechanical stability of the entire system. In addition, the ability of the motor to directly drive the load simplifies mechanical design, reduces maintenance burden, and improves the overall efficiency and reliability of the system.
This motor is particularly suitable for applications in industrial automation fields that require precise torque control and high performance, such as robotics technology, precision assembly, and high-end testing equipment, providing an efficient and economical power solution.
baolong offer Rotary Servo Motor, Brushed Servo Motor, and Reversing Servo Motor Overview:Servo motors are available in various types, each offering unique features and capabilities.
A rotary servo motor is a type of servo motor that converts electrical signals into rotary motion. It consists of a stator and a rotor, where the stator contains coils and the rotor contains permanent magnets. Rotary servo motors are widely used in applications that require precise angular positioning and control, such as robotics, industrial automation, CNC machines, and more. They offer high torque, accurate positioning, and excellent speed control.
A brushed servo motor, also known as a DC brushed servo motor, is a type of servo motor that uses carbon brushes and a commutator to deliver electrical power to the motor windings. These motors are known for their simplicity and cost-effectiveness. Brushed servo motors are commonly used in applications that require moderate speed and torque, such as hobby projects, small-scale robotics, and positioning systems. However, they require regular maintenance due to the wear and tear of the brushes and commutator.
A reversing servo motor is a servo motor that can rotate in both clockwise and counterclockwise directions. It is designed to provide bidirectional motion control, allowing precise control over the position and speed of the connected system. Reversing servo motors are commonly used in applications that require back-and-forth or oscillating motions, such as automated gates, conveyor systems, robotic arms, and more. They offer versatility and ease of control for applications that require frequent direction changes.
Electrical Specifications
| Motor Model | 95SSEH486230 |
| Number of Phase | 3 |
| Number of Poles | 16 |
| Rated Voltage(VDC) | 48 |
| Rated Speed(Rpm) | 3000 |
| Rated Torque(N.m) | 2.0 |
| Rated Power(W) | 628 |
| Rated Current(A) | 17.5 |
| Peak Current(A) | 52.5 |
| Peak Torque(N.M) | 6.0 |
| Rotor Inertia(kg.cm2) | 0.52 |
| Torque Constant(N.m/A) | 0.11 |
| Torque Constant(V/krpm) | 10.5 |
| Line-Line Resistance(Ω) | 0.4 |
| Line-Line Inductance(mH) | 0.8 |
| Length(mm) | 20 |
| Weight(kg) | 1.3 |
*Note：We can manufacture products according to customer's requirements.
Wiring Diagram

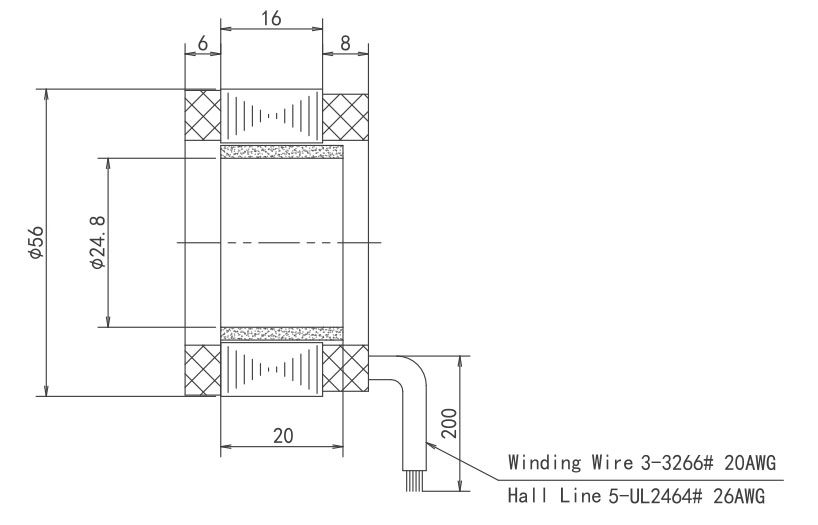

Dimensions(Unit: mm)
